CODE PREFIX: GPS3008
Bolt Anchor Socket
A threaded lifting socket with an integrated hex bolt anchor, cast into precast concrete elements to provide a secure, reusable threaded connection point for lifting clutches and fixing hardware.
APPLICATIONS
Where it's used
Precast Wall Panel Lifting
Embedded flush into wall and floor panels to receive a matching lifting clutch during demoulding and erection.
Tilt-Up Construction
Provides a reliable threaded pick-up point for tilting and positioning large precast panels on site.
Temporary Bracing & Fixing
Doubles as an anchor point for temporary props, braces, and handling equipment after the panel is cast.
Material
Zinc-Plated Carbon Steel
Load Range
500 – 4000 KGS
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Size | S.W.L (KGS) | Code | L (mm) | d (mm) | e (mm) |
|---|---|---|---|---|---|
| Rd12 | 500 | GPS300812070 | 70 | 8 | 20 |
| Rd16 | 1200 | GPS300816080 | 80 | 12 | 25 |
| Rd20 | 2000 | GPS300820127 | 127 | 16 | 32 |
| Rd24 | 2500 | GPS300824140 | 140 | 20 | 38 |
| Rd30 | 4000 | GPS300830170 | 170 | 20 | 48 |
- Other different length and metric thread are available upon request
- Safety factor is 3:1
YOU MAY ALSO NEED
Related Products

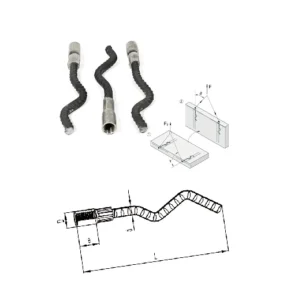

Wavy Tail Anchor (Long Type)
