CODE PREFIX: GPS1004
Eye Anchor
A cast-in eye anchor with an integral lifting ring, allowing a sling or shackle to attach directly without a separate lifting clutch.
APPLICATIONS
Where it's used
Direct Sling / Shackle Attachment
Integral eye allows direct rigging without a matching lifting clutch.
Heavy Precast Beam & Column Lifting
Higher rated-load options (up to 20 t) suit heavier structural precast elements.
Temporary Works & Site Rigging
Simple eye profile is easy to inspect and rig in the field during erection.
Material
Forged Carbon Steel
Load Range
1.3 – 20 tons
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Rated Load (Tons) | Code | D (mm) | D1 (mm) | L (mm) | S (mm) |
|---|---|---|---|---|---|
| 1.3 | GPS1004013 | 10 | 19 | 65 | 8 |
| 2.5 | GPS1004025 | 14 | 26 | 90 | 10 |
| 5.0 | GPS1004050 | 20 | 36 | 120 | 14 |
| 10.0 | GPS1004100 | 28 | 46 | 180 | 20 |
| 20.0 | GPS1004200 | 38 | 69 | 250 | 28 |
- Stainless Steel 304 (A2) / 316 (A4) available upon request.
- Surface finish options: Black (B) / Zinc Plated (Z.P) / Hot Dipped Galvanized (H.D.G).
YOU MAY ALSO NEED
Related Products

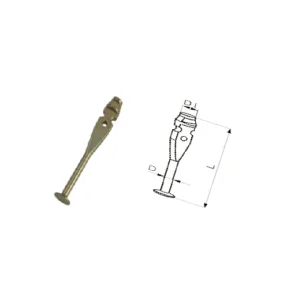

Spherical Head Tilt Up Anchor
