CODE PREFIX: GPS3002
Solid Bar Lifting Socket
A solid steel bar socket with a slotted head, embedded in precast concrete to give a compact, high-strength threaded lifting point.
APPLICATIONS
Where it's used
Heavy Precast Element Lifting
Solid bar construction suits higher-load columns, beams and thick wall panels.
Precast Yard Handling
Reusable threaded point for everyday demoulding and stacking operations.
Site Erection
Receives a matching lifting clutch for crane pick during transport and installation.
Material
Carbon Steel (Stainless Steel 304/316 available on request)
Load Range
500 – 6300 KGS
Safety Factor
3:1
SPECIFICATIONS
Available Sizes

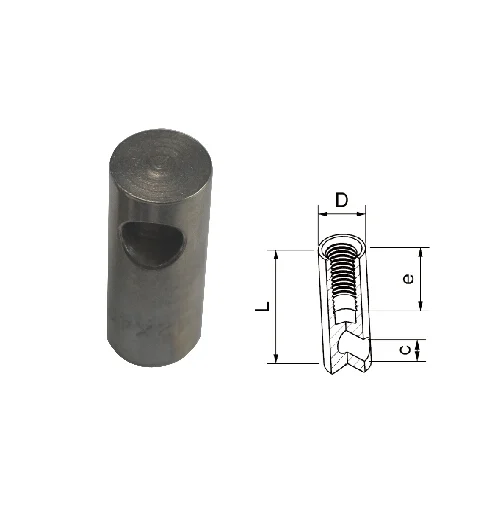

| Size | S.W.L (KGS) | Code | L (mm) | e (mm) | D (mm) | C (mm) |
|---|---|---|---|---|---|---|
| Rd12 | 500 | GPS300212050 | 50 | 22 | 17 | 9.5 |
| Rd16 | 1200 | GPS300216061 | 61 | 30 | 23 | 14.0 |
| Rd20 | 2000 | GPS300220073 | 73 | 38 | 28 | 16.5 |
| Rd24 | 2500 | GPS300224086 | 86 | 46 | 32 | 19.0 |
| Rd30 | 4000 | GPS300230107 | 107 | 58 | 39 | 22.0 |
| Rd36 | 6300 | GPS300236138 | 138 | 68 | 48 | 29.0 |
- Other different length and metric thread are available upon request
- Stainless Steel 304 (A2)/316 (A4) are available upon request
- Safety factor is 3:1
