CODE PREFIX: GPS2001

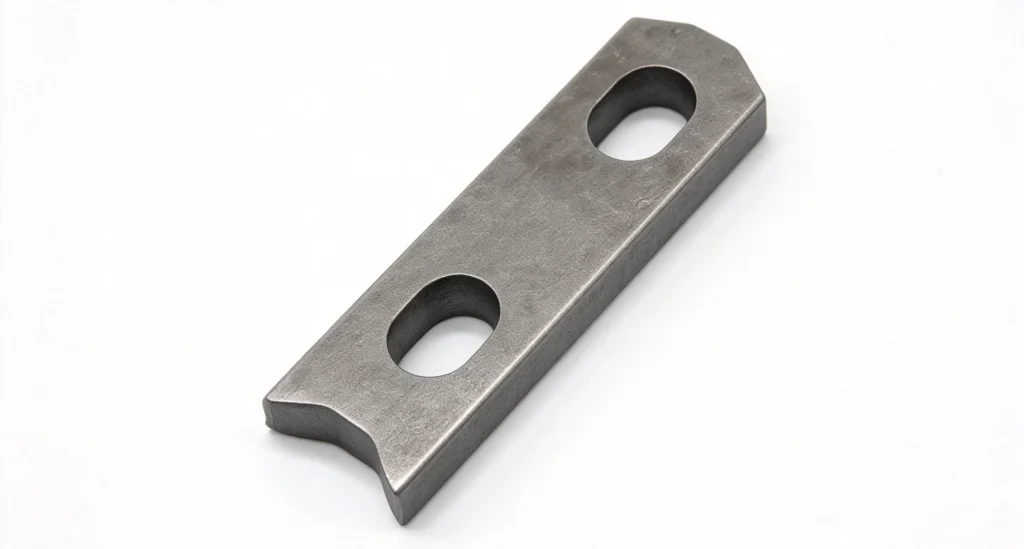

Two Hole Anchor
A twin-holed steel anchor plate, embedded flush into precast panels to give two bearing points for a plate clutch, spreading load across the connection.
APPLICATIONS
Where it's used
Precast Wall Panel Lifting
Two-hole head lets the clutch bear across a wider span for a more stable, even lift.
General Yard Handling
Flush plate profile suits repeat demoulding, turning and stacking in the production yard.
Heavy Element Handling
Larger sizes (26-tonne group) support thicker, higher-capacity precast elements.
Material
Steel Plate
Load Range
1.4 – 26.0 tons axial
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Load Group (Tons) | Axial Load (Tons) | Code | L (mm) | W (mm) | T (mm) | D (mm) |
|---|---|---|---|---|---|---|
| 2.5 | 1.4 | GPS2001014090 | 90 | 30 | 6 | 14 |
| 2.5 | 2.0 | GPS2001020090 | 90 | 30 | 8 | 14 |
| 2.5 | 2.5 | GPS2001025090 | 90 | 30 | 10 | 14 |
| 5.0 | 3.0 | GPS2001030120 | 120 | 40 | 10 | 18 |
| 5.0 | 4.0 | GPS2001040120 | 120 | 40 | 12 | 18 |
| 5.0 | 5.0 | GPS2001050120 | 120 | 40 | 15 | 18 |
| 10.0 | 5.3 | GPS2001053160 | 160 | 60 | 12 | 26 |
| 10.0 | 7.5 | GPS2001075160 | 160 | 60 | 16 | 26 |
| 10.0 | 10.0 | GPS2001100170 | 170 | 60 | 20 | 30 |
| 26.0 | 14.0 | GPS2001140240 | 240 | 80 | 20 | 35 |
| 26.0 | 17.0 | GPS2001170300 | 300 | 80 | 25 | 35 |
| 26.0 | 26.0 | GPS2001220300 | 300 | 120 | 30 | 65 |
- Safety factor is 3:1
- Stainless Steel 304 (A2)/316 (A4) are available upon request
- Surface: Black (B) /Zinc Plated (Z.P) / Hot Dipped Galvanized (H.D.G) are available
YOU MAY ALSO NEED
Related Products
Ring Lift Uni-Anchor
View product

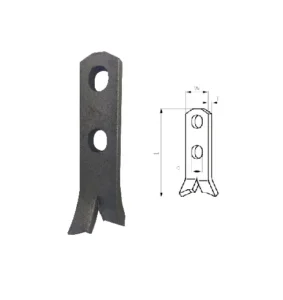

Spread Anchor
