Wavy Tail Anchor (Long Type)

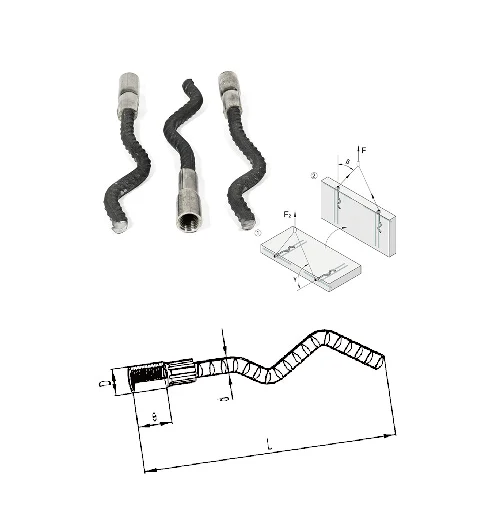

An anchor socket with a long, flexible corrugated tail bar, embedded in precast edges and thin sections to provide extra pull-out resistance without a bulky anchor head.
APPLICATIONS
Where it's used
Thin Panel Edge Anchoring
Long flexible tail embeds along the panel edge where a straight rigid anchor won't fit.
Precast Slab & Wall Lifting
Corrugated profile improves bond and pull-out resistance in thinner sections.
Heavy Element Handling
Larger sizes (up to Rd52) support higher-capacity precast elements.
Material
Zinc-Plated Carbon Steel
Load Range
500 – 12500 KGS
Safety Factor
4:1
SPECIFICATIONS
Available Sizes
| Size | S.W.L (KGS) | Code | L (mm) | D (mm) | d (mm) | e (mm) |
|---|---|---|---|---|---|---|
| Rd12 | 500 | GPS330212137 | 137 | 16 | 8 | 22 |
| Rd16 | 1200 | GPS330216216 | 216 | 21 | 12 | 27 |
| Rd20 | 2000 | GPS330220257 | 257 | 27 | 14 | 35 |
| Rd24 | 2500 | GPS330224350 | 350 | 31 | 16 | 43 |
| Rd30 | 4000 | GPS330230450 | 450 | 40 | 20 | 56 |
| Rd36 | 6300 | GPS330236570 | 570 | 48 | 25 | 69 |
| Rd42 | 8000 | GPS330242620 | 620 | 54 | 28 | 80 |
| Rd52 | 12500 | GPS330252880 | 880 | 68 | 32 | 95 |
- Other different length and metric thread are available upon request
- Safety factor is 4:1
