CODE PREFIX: GPS500D

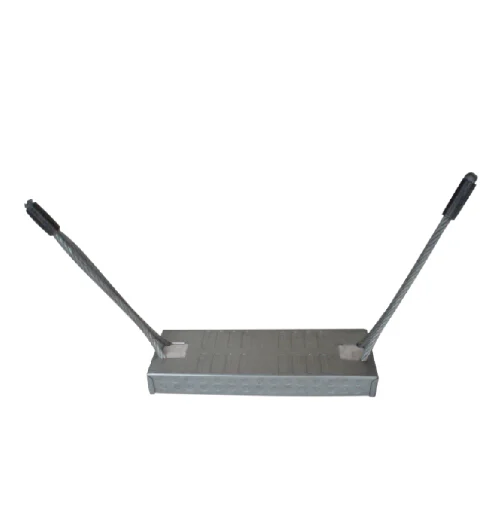

Double Connector Box Loop
The double-loop version of the cast-in wire rope loop connector, housing two parallel wire rope loops in the same steel box for a higher-capacity shear connection between precast panels, with the same color-coded sizing (80/100/120mm) as the single-loop Connector Box Loop.
APPLICATIONS
Where it's used
Higher-Load Panel Connections
Two parallel loops share the connection load, suiting heavier precast wall or floor panel joints than the single-loop connector.
Structural Wall-to-Wall Joints
Used at structural joints where a single-loop connector doesn't provide enough shear capacity.
Colour-Coded Site Identification
The clip color (black/white/blue) lets site crews match the correct loop size quickly without checking a drawing for every connection.
Material
1770MPa wire rope, zinc plated
Load Range
N/A
Safety Factor
N/A
SPECIFICATIONS
Available Sizes
| Item | b (mm) | i (mm) | h (mm) | d (mm) | L (mm) | SL (mm) | Clip Color | Code |
|---|---|---|---|---|---|---|---|---|
| GPS-D-80 | 50 | 200 | 20 | 3 | 212 | 80 | Black | GPS500D80 |
| GPS-D-100 | 50 | 200 | 20 | 3 | 212 | 100 | White | GPS500D100 |
| GPS-D-120 | 50 | 200 | 20 | 3 | 212 | 120 | Blue | GPS500D120 |
Material: 1770MPa wire rope, zinc plated.
YOU MAY ALSO NEED
Related Products
Connector Box Loop
View product

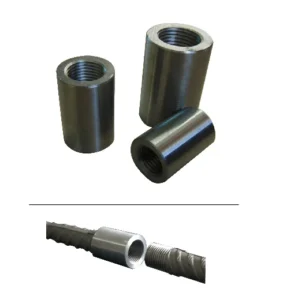

Rebar Coupler – Upset Parallel Thread
