CODE PREFIX: GPS2004

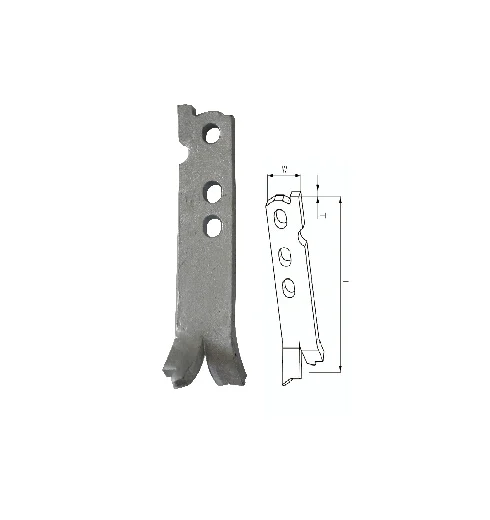

Unilateral Erection Anchor
A forged erection anchor with a single lifting hole, embedded in precast wall panels as a straightforward, single-point surface lifting anchor across a wide load range.
APPLICATIONS
Where it's used
Precast Wall Panel Erection
Single-hole head gives a direct, uncomplicated pick-up point for the plate clutch during tilting and erection.
Floor & Slab Handling
Mid-range sizes suit precast floor slabs and medium-duty flat elements.
Heavy Element Lifting
Largest sizes (26-tonne group) handle thicker, higher-capacity precast wall and beam elements.
Material
Forged Steel
Load Range
1.4 – 22.0 tons axial
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Load Group (Tons) | Axial Load (Tons) | Code | L (mm) | W (mm) | T (mm) |
|---|---|---|---|---|---|
| 2.5 | 1.4 | GPS2004014200 | 200 | 40 | 6 |
| 2.5 | 2.5 | GPS2004025230 | 230 | 40 | 10 |
| 5.0 | 4.0 | GPS2004040270 | 270 | 55 | 12 |
| 5.0 | 5.0 | GPS2004050290 | 290 | 55 | 16 |
| 10.0 | 7.5 | GPS2004075320 | 320 | 80 | 16 |
| 10.0 | 10.0 | GPS2004100390 | 390 | 80 | 20 |
| 26.0 | 12.5 | GPS2004125500 | 500 | 114 | 20 |
| 26.0 | 17.0 | GPS2004170500 | 500 | 114 | 25 |
| 26.0 | 22.0 | GPS2004220300 | 500 | 114 | 30 |
- Other different Length and load capacity are available upon request.
- Safety Factor is 3:1.
- Stainless Steel 304 (A2)/316 (A4) are available upon request
- Surface: Black (B) /Zinc Plated (Z.P) / Hot Dipped Galvanized (H.D.G) are available
