CODE PREFIX: GPS3007
Crown Foot Anchor Socket
A black-oxide finished foot anchor socket with a hexagonal base, embedded in precast elements to create a flush, load-rated threaded pick-up point.
APPLICATIONS
Where it's used
Precast Column & Beam Lifting
Cast into the top face of columns and beams to provide a recessed threaded lifting point.
Demoulding & Handling
Lets the clutch engage immediately after formwork strike, speeding up yard handling.
Storage Stacking
Used as a secure tie-down/lifting point when stacking precast units in the storage yard.
Material
Carbon Steel, Black Oxide Finish
Load Range
500 – 4000 KGS
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Size | S.W.L (KGS) | Code | L (mm) | D (mm) | e (mm) |
|---|---|---|---|---|---|
| Rd12 | 500 | GPS300712060 | 60 | 17 | 24 |
| Rd16 | 1200 | GPS300716080 | 80 | 21 | 32 |
| Rd20 | 2000 | GPS300720100 | 100 | 27 | 40 |
| Rd24 | 2500 | GPS300724115 | 115 | 31 | 48 |
| Rd30 | 4000 | GPS300730150 | 150 | 39 | 60 |
- Other different length and metric thread are available upon request
- Safety factor is 3:1
YOU MAY ALSO NEED
Related Products

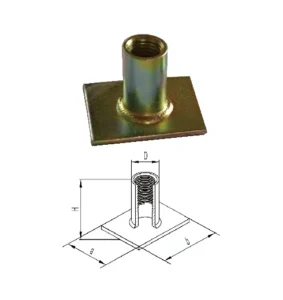

Flat Plate Lifting Socket
View product

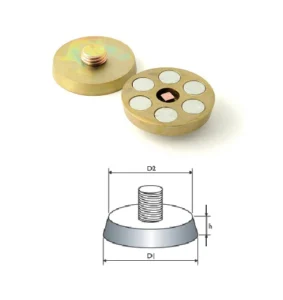

Magnetic Steel Plates
