CODE PREFIX: GPS3601

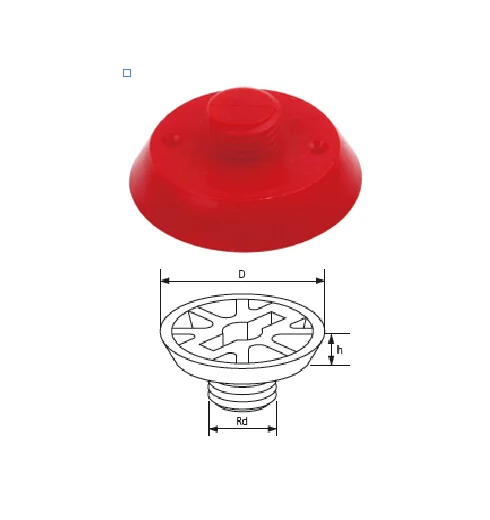

Plastic Nailing Plates
A durable plastic cover plate that nails to the formwork to protect the socket thread and form a clean recess around the lifting point during casting.
APPLICATIONS
Where it's used
Socket Thread Protection
Shields the embedded socket's thread from concrete ingress during the pour.
Recess Forming
Creates a neat, consistent recess around the lifting point for easy clutch engagement after strike.
Reusable Formwork Fixing
Nails directly to timber or steel formwork and can be reused across multiple casting cycles.
Material
High-Impact Plastic (Red)
Load Range
N/A
Safety Factor
N/A
SPECIFICATIONS
Available Sizes
| Size | Code | D (mm) | h (mm) |
|---|---|---|---|
| M/Rd12 | GPS3601-12 | 50 | 10 |
| M/Rd16 | GPS3601-16 | 59 | 10 |
| M/Rd20 | GPS3601-20 | 59 | 10 |
| M/Rd24 | GPS3601-24 | 59 | 10 |
| M/Rd30 | GPS3601-30 | 69 | 10 |
| M/Rd36 | GPS3601-36 | 69 | 10 |
Need a rating outside this range, or a custom variant? Our engineering team can help.
YOU MAY ALSO NEED
Related Products

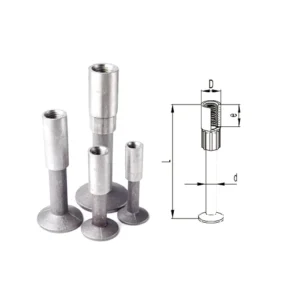

Heavy Duty Foot Anchor Socket
