CODE PREFIX: GPS7050

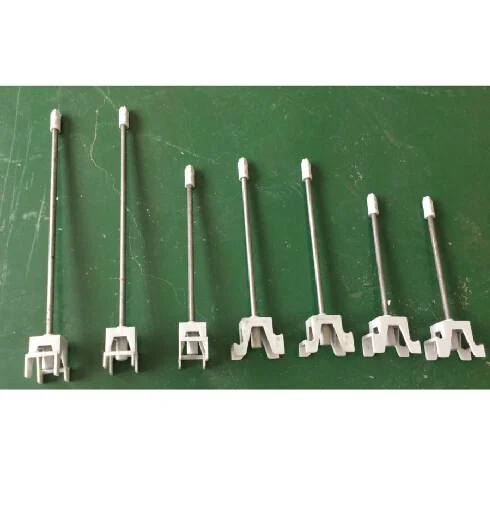

Double Wall Spacer
A graduated plastic spacer with a rod body and saddle-clip feet that holds two layers of reinforcement mesh apart at a fixed distance, used in double-wall (sandwich) precast panels. Supplied in 5 sizes for wall thicknesses from 200mm to 400mm.
APPLICATIONS
Where it's used
Double-Wall / Sandwich Panel Production
Holds the inner and outer reinforcement mesh layers of a double-wall precast panel at the correct fixed separation through casting.
Mesh-to-Mesh Spacing Control
The saddle-clip feet grip each mesh layer directly, keeping both layers parallel and at the intended spacing during handling and the pour.
Wall-Thickness Matched Selection
5 graduated sizes (200-400mm) let the spacer be matched to the finished wall thickness specified for the panel.
Material
Plastic
Load Range
N/A
Safety Factor
N/A
SPECIFICATIONS
Available Sizes
| Size | Code | Wall thickness (mm) |
|---|---|---|
| 200 | GPS7050200 | 200 |
| 250 | GPS7050250 | 250 |
| 300 | GPS7050300 | 300 |
| 350 | GPS7050350 | 350 |
| 400 | GPS7050400 | 400 |
Other different sizes are available upon request.
YOU MAY ALSO NEED
Related Products

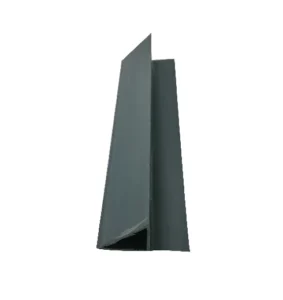

Plastic Chamfer with Nail Flange
View product

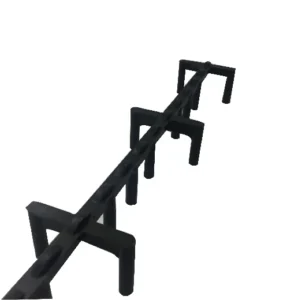

Plastic Line Spacer
