CODE PREFIX: GPS1003

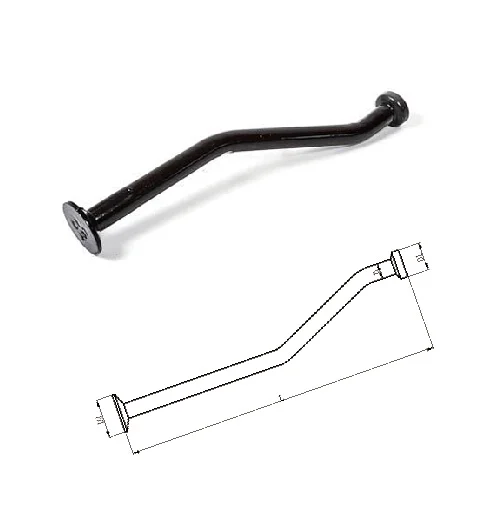

Off Set Lifting Anchor
An offset-shaft lifting anchor designed for vertical lifting of tilt-up and precast wall panels in conjunction with a spreader beam.
APPLICATIONS
Where it's used
Tilt-Up Wall Panel Erection
Offset shaft geometry suits vertical lifting of tilt-up panels off the casting bed.
Spreader-Beam Rigging
Designed to be used together with a spreader beam for correct vertical lift geometry.
Architectural Precast Panels
Provides a reliable lift point on panels where a straight-shaft anchor isn't suitable.
Material
Forged Carbon Steel
Load Range
1.3 – 20 tons
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Rated Load (Tons) | Code | D (mm) | D1 (mm) | D2 (mm) | L (mm) |
|---|---|---|---|---|---|
| 1.3 | GPS1003013 | 10 | 19 | 25 | 227 |
| 2.5 | GPS1003025 | 14 | 26 | 35 | 268 |
| 4.0 | GPS1003040 | 18 | 36 | 45 | 406 |
| 5.0 | GPS1003050 | 20 | 36 | 50 | 466 |
| 7.5 | GPS1003075 | 24 | 46 | 60 | 664 |
| 10.0 | GPS1003100 | 28 | 46 | 70 | 667 |
| 15.0 | GPS1003150 | 34 | 69 | 85 | 825 |
| 20.0 | GPS1003200 | 38 | 69 | 98 | 986 |
- Other different Length and load capacity are available upon request.
- Stainless Steel 304 (A2) / 316 (A4) available upon request.
- Surface finish options: Black (B) / Zinc Plated (Z.P) / Hot Dipped Galvanized (H.D.G).
- Rebar kind also can be done by order.
- Note: The Off-set lifting anchor should only be used for vertical lifting in conjunction with a spreader beam.
