CODE PREFIX: GPS3103
Fixing Socket With Nail Plate
A fixing socket with a perforated nail plate at its base, letting it be nailed directly to timber formwork before the pour so it stays correctly positioned and square during casting.
APPLICATIONS
Where it's used
Timber Formwork Casting
Nail plate lets the socket be fixed to the formwork face before the pour, keeping it precisely positioned.
Flat Panel & Slab Production
Suited to flat precast panel and slab beds where formwork-fixed accuracy matters most.
Repeatable Fixing-Point Placement
Nailing to the mould gives consistent, repeatable fixing-point location across a production run.
Material
Stainless Steel 304 (A2) / 316 (A4) available upon request
Load Range
350 - 1,700 KGS
Safety Factor
3:1
SPECIFICATIONS
Available Sizes

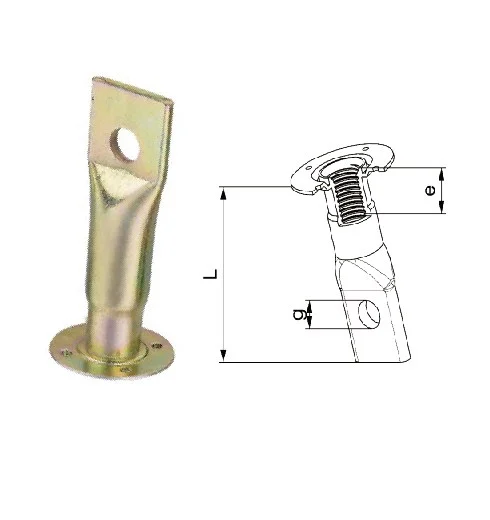

| Size | S.W.L (KGS) | Code | L (mm) | g (mm) | e (mm) |
|---|---|---|---|---|---|
| M10 | 350 | GPS310310050 | 50 | 9.5 | 10 |
| M12 | 500 | GPS310312070 | 70 | 10.5 | 12 |
| M16 | 800 | GPS310316080 | 80 | 12.5 | 16 |
| M16 | 1000 | GPS310316100 | 100 | 12.5 | 16 |
| M20 | 1250 | GPS310320100 | 100 | 14.5 | 20 |
| M24 | 1700 | GPS310324120 | 120 | 14.5 | 24 |
- Stainless Steel 304 (A2)/316 (A4) available upon request.
- Safety Factor is 3:1.
YOU MAY ALSO NEED
Related Products
Fixing Socket With Wavy End
View product

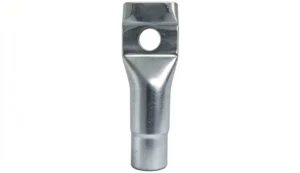

Fixing Dowel With Crimped End
