CODE PREFIX: GPS2302

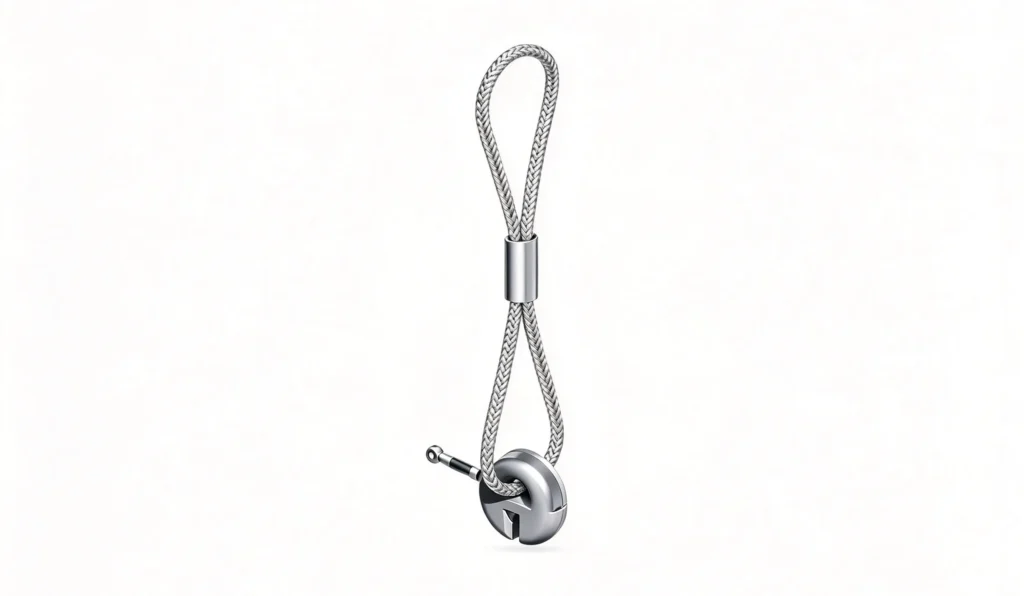

Wire Rope Ring Clutch
A flexible wire rope sling fitted with a forged ring clutch, giving a quick-connect lifting point for precast elements where a rigid clutch can't reach or align.
APPLICATIONS
Where it's used
Confined & Angled Lifting Points
Flexible wire rope reaches recesses and angled faces a rigid plate clutch can't engage.
Multi-Point Rigging
Used across multi-leg slings for balanced lifting of long or asymmetric precast elements.
General Precast Handling
Quick-connect ring clutch speeds up attaching and releasing the crane during repeat yard handling.
Material
Galvanized Steel Wire Rope with a Forged Ring Clutch Fitting
Load Range
1.3 – 26 tons
Safety Factor
N/A
SPECIFICATIONS
Available Sizes
| Load Group (Tons) | Load Range (Tons) | Code |
|---|---|---|
| 1.25 | 1.3 | GPS2302-1.25 |
| 2.5 | 1.4-2.5 | GPS2302-2.5 |
| 5 | 3.0-5.0 | GPS2302-5.0 |
| 10 | 6.0-10.0 | GPS2302-10.0 |
| 26 | 12.5-26 | GPS2302-26 |
Need a rating outside this range, or a custom variant? Our engineering team can help.
YOU MAY ALSO NEED
Related Products

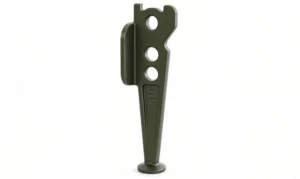

Fleet-Lift Drop Forged Erection Anchor with Shear Plate
View product

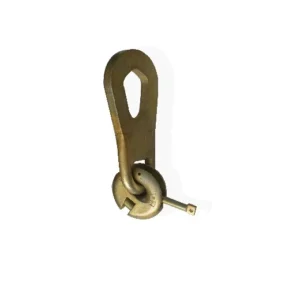

Ring Clutch
