CODE PREFIX: GPS708C

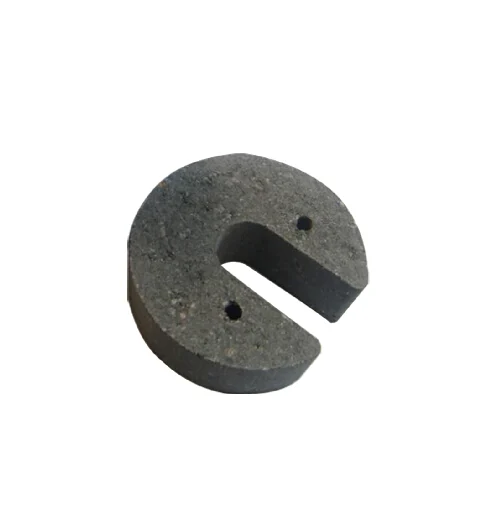

Concrete Spacer – C Type
A circular precast concrete spacer with a C-shaped notch that clips directly onto the reinforcing bar to hold the specified concrete cover. Supplied in 7 cover sizes (C15-C50) matched to rebar diameters from 8mm to 20mm.
APPLICATIONS
Where it's used
Clip-On Bar Cover Control
The C-shaped notch clips onto the bar itself, holding the spacer in place without tying wire while setting the concrete cover.
Column & Beam Reinforcement Support
Suited to vertical and horizontal bar runs where a spacer needs to grip the bar rather than just rest under it.
Rebar-Diameter Matched Selection
7 cover sizes, each paired to a specific rebar diameter (8-20mm), keep the spacer properly seated on the bar it's supporting.
Material
Concrete
Load Range
100 - 300 kg
Safety Factor
N/A
SPECIFICATIONS
Available Sizes
| Item | Code | Cover (mm) | Dia (mm) | Rebar Dia (mm) | Load strength (kg) |
|---|---|---|---|---|---|
| C15 | GPS708C15 | 15 | 38 | 8 | 100 |
| C20 | GPS708C20 | 20 | 52 | 12 | 100 |
| C25 | GPS708C25 | 25 | 66 | 16 | 200 |
| C30 | GPS708C30 | 30 | 76 | 16 | 200 |
| C35 | GPS708C35 | 35 | 86 | 18 | 300 |
| C40 | GPS708C40 | 40 | 100 | 20 | 300 |
| C50 | GPS708C50 | 50 | 120 | 20 | 300 |
Other different sizes are available upon request.
