CODE PREFIX: GPS3602
Magnetic Steel Plates

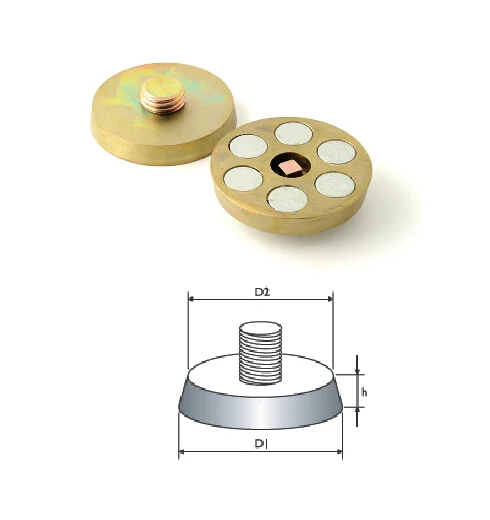

A brass magnetic fixing plate used to hold void-formers and fixing sockets accurately in place on the formwork before the concrete pour.
APPLICATIONS
Where it's used
Socket & Void-Former Positioning
Holds lifting sockets and recess formers firmly against steel formwork during casting.
Precast Mould Setup
Speeds up formwork preparation by letting fixings be placed and removed without drilling.
Repeat-Use Production
Reusable across multiple pours, reducing formwork wear compared to screwed or welded fixings.
Material
Brass Body with Ceramic Magnets
Load Range
N/A
Safety Factor
N/A
SPECIFICATIONS
Available Sizes
| Size | Code | D1 (mm) | D2 (mm) | h (mm) |
|---|---|---|---|---|
| M/Rd12 | GPS3602-12 | 50 | 46 | 10 |
| M/Rd16 | GPS3602-16 | 54 | 50 | 12 |
| M/Rd20 | GPS3602-20 | 54 | 50 | 12 |
| M/Rd24 | GPS3602-24 | 59 | 55 | 12 |
| M/Rd30 | GPS3602-30 | 69 | 65 | 12 |
| M/Rd36 | GPS3602-36 | 69 | 65 | 12 |
Need a rating outside this range, or a custom variant? Our engineering team can help.
