CODE PREFIX: GPS2005
Flat Anchor

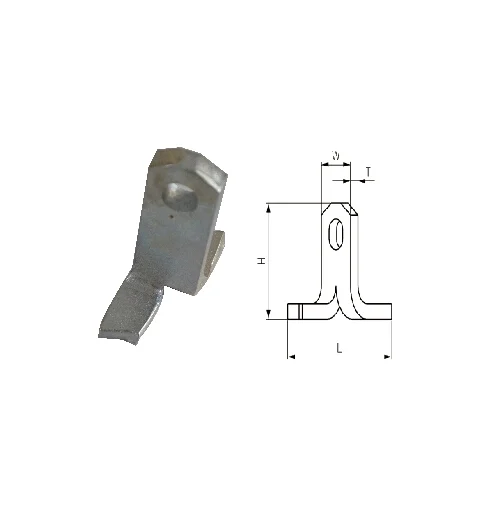

A T-shaped flat anchor with a slotted head on a flat base, embedded into precast panels to provide a compact surface lifting and bracing point across a wide load range.
APPLICATIONS
Where it's used
Precast Panel Lifting
T-profile base anchors into the panel face while the slotted head takes a plate clutch for lifting.
Tilt-Up & Sandwich Panels
Compact footprint suits thinner wall sections where a bulkier anchor won't fit.
Heavy Element Bracing
Larger sizes (26-tonne group) support bracing and handling of thicker, higher-capacity elements.
Material
Forged Carbon Steel
Load Range
1.4 – 22.0 tons axial
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Load Group (Tons) | Axial Load (Tons) | Code | H (mm) | W (mm) | T (mm) | L (mm) |
|---|---|---|---|---|---|---|
| 2.5 | 1.4 | GPS2005014065 | 65 | 30 | 6 | 70 |
| 2.5 | 2.5 | GPS2005025075 | 75 | 30 | 10 | 94 |
| 5.0 | 3.0 | GPS2005030090 | 90 | 40 | 10 | 100 |
| 5.0 | 4.0 | GPS2005040110 | 110 | 40 | 12 | 100 |
| 5.0 | 5.0 | GPS2005050125 | 125 | 40 | 15 | 105 |
| 10.0 | 5.3 | GPS2005053150 | 320 | 60 | 12 | 120 |
| 10.0 | 7.5 | GPS2005075170 | 170 | 60 | 16 | 120 |
| 10.0 | 10.0 | GPS2005100200 | 200 | 60 | 20 | 120 |
| 26.0 | 12.5 | GPS2005125220 | 220 | 80 | 20 | 200 |
| 26.0 | 17.0 | GPS2005170270 | 270 | 80 | 25 | 200 |
| 26.0 | 22.0 | GPS2005220310 | 310 | 120 | 30 | 200 |
- Other different Length and load capacity are available upon request.
- Safety Factor is 3:1.
- Stainless Steel 304 (A2)/316 (A4) are available upon request
- Surface: Black (B) /Zinc Plated (Z.P) / Hot Dipped Galvanized (H.D.G) are available.
