CODE PREFIX: GPS3104

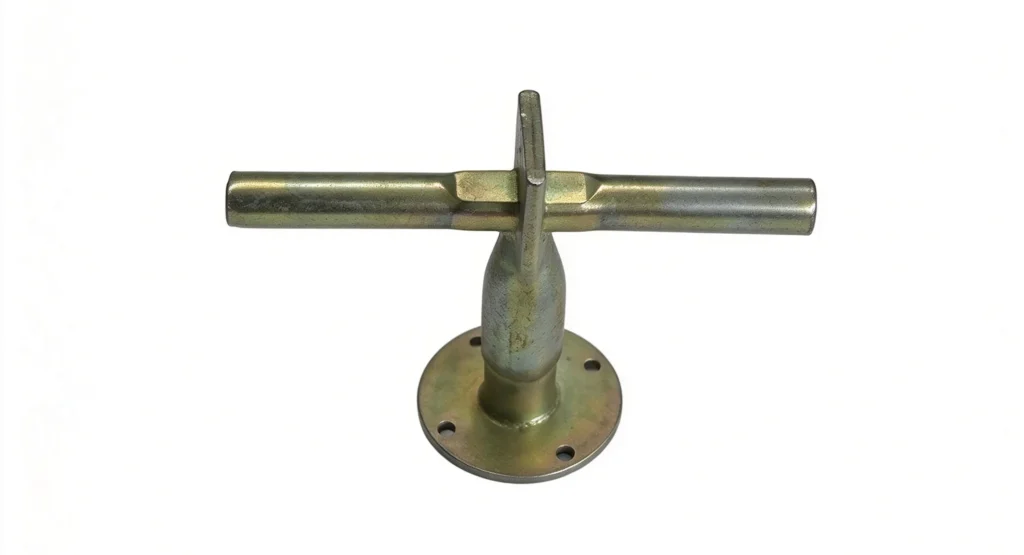

Fixing Socket With Nail Plate And Cross Pin
Combines a nail plate for accurate formwork positioning with a cross pin for extra pull-out resistance – the heaviest-duty fixing socket in the range for demanding, high-precision fixing points.
APPLICATIONS
Where it's used
High-Demand Facade Fixings
Nail-plate positioning plus cross-pin anchorage suits fixing points under both precision and load demands.
Timber Formwork with Higher Pull-Out Needs
Combines formwork-fixed accuracy with stronger concrete anchorage than a nail-plate-only socket.
Critical Structural Fixing Points
Used where a fixing point must hold its exact position during casting and carry higher tensile load in service.
Material
Stainless Steel 304 (A2) / 316 (A4) available upon request
Load Range
350 - 1,700 KGS
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Size | S.W.L (KGS) | Code | L (mm) | g (mm) | e (mm) |
|---|---|---|---|---|---|
| M10 | 350 | GPS310410050 | 50 | 9.5 | 10 |
| M12 | 500 | GPS310412070 | 70 | 10 | 12 |
| M16 | 800 | GPS310416080 | 80 | 12.5 | 16 |
| M16 | 1000 | GPS310416100 | 100 | 12.5 | 16 |
| M20 | 1250 | GPS310420100 | 100 | 14.5 | 20 |
| M24 | 1700 | GPS310424120 | 120 | 14.5 | 24 |
- Stainless Steel 304 (A2)/316 (A4) available upon request.
- Safety Factor is 3:1.
