CODE PREFIX: GPS2010-P
Erection Anchor with Shear Plate

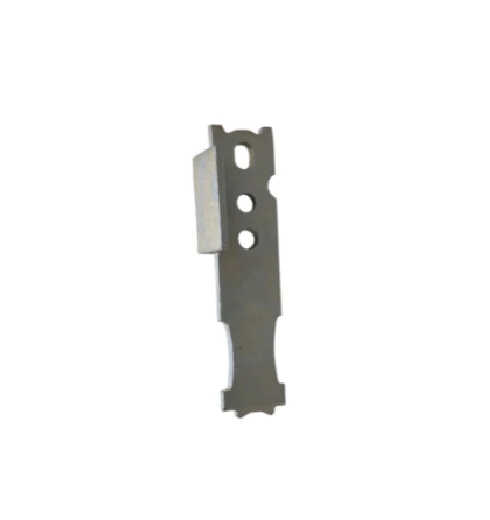

A steel erection anchor fitted with a welded shear plate, embedded in precast wall panels to resist lateral (shear) load in addition to the straight lifting pull, without the cross pin of the heavier-duty version.
APPLICATIONS
Where it's used
Wall Panel Lifting & Bracing
Shear plate spreads lateral load into the panel face, keeping the anchor stable while the panel is braced upright.
Tilt-Up Construction
Used as the primary pick-up and bracing point on tilt-up wall panels during erection.
General Precast Handling
Suits panels that need shear resistance but not the extra cross-pin connection of the heavier-duty variant.
Material
Hot-Rolled Steel Plate with Welded Shear Plate
Load Range
2.0 – 8.0 tons axial
Safety Factor
N/A
SPECIFICATIONS
Available Sizes
| Load Group (Tons) | Axial Load (Tons) | Code | L (mm) | W (mm) | T (mm) |
|---|---|---|---|---|---|
| 2.5 | 2.0 | GPS2010020200 | 200 | 55 | 10 |
| 5.0 | 4.0 | GPS2010040270 | 270 | 70 | 16 |
| 10.0 | 6.0 | GPS2010060325 | 325 | 95 | 16 |
| 10.0 | 8.0 | GPS2010080325 | 325 | 95 | 20 |
Need a rating outside this range, or a custom variant? Our engineering team can help.
