CODE PREFIX: GPS3303

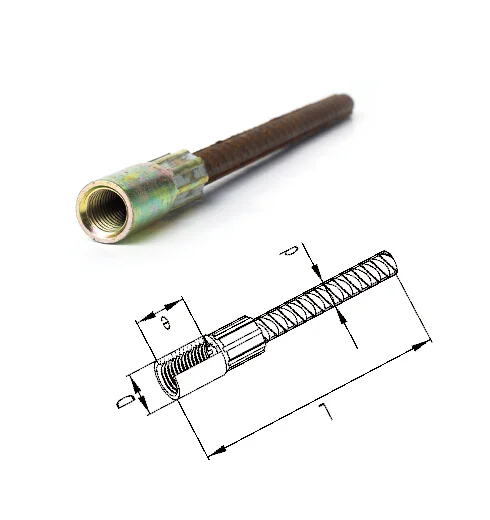

Straight Rebar Socket Anchor
A straight embedded anchor bar with a threaded Rebar-style socket head, cast into precast elements for a strong, flush-mounted lifting point.
APPLICATIONS
Where it's used
Precast Wall & Floor Panel Lifting
Straight bar profile anchors deep into the element for high pull-out resistance.
Tilt-Up Construction
Provides a secure pick-up point for tilting and positioning large panels.
Heavy Element Handling
Larger sizes (Rd36–Rd42) suit thicker, higher-capacity precast sections.
Material
Zinc-Plated Carbon Steel
Load Range
500 – 8000 KGS
Safety Factor
4:1
SPECIFICATIONS
Available Sizes
| Size | S.W.L (KGS) | Code | L (mm) | D (mm) | d (mm) | e (mm) |
|---|---|---|---|---|---|---|
| Rd12 | 500 | GPS330312200 | 200 | 16 | 8 | 22 |
| Rd16 | 1200 | GPS330316270 | 270 | 21 | 12 | 27 |
| Rd20 | 2000 | GPS330320350 | 350 | 27 | 14 | 35 |
| Rd24 | 2500 | GPS330324400 | 400 | 31 | 16 | 43 |
| Rd30 | 4000 | GPS330330500 | 500 | 40 | 20 | 56 |
| Rd36 | 6300 | GPS330336650 | 650 | 48 | 25 | 69 |
| Rd42 | 8000 | GPS330342850 | 850 | 54 | 28 | 80 |
- Other different length and metric thread are available upon request
- Safety factor is 4:1
YOU MAY ALSO NEED
Related Products
Flat Lifting Socket With Rebar (Slab Anchor)
View product

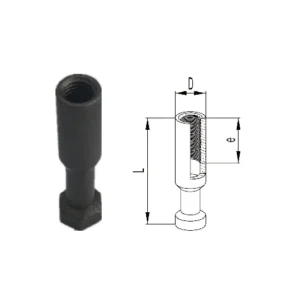

Crown Foot Anchor Socket
