CODE PREFIX: GPS320

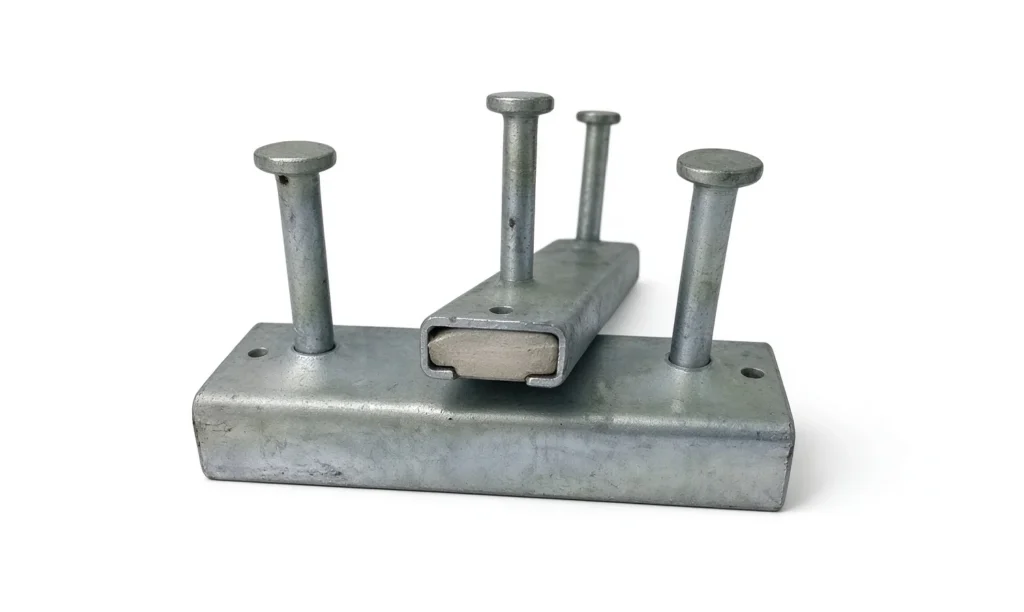

Cold Rolled Cast In Channel
A cold-rolled cast-in channel with integral anchor studs, embedded in precast concrete to form a continuous slotted track that a matching channel bolt can be positioned anywhere along, rather than at one fixed point.
APPLICATIONS
Where it's used
Adjustable Facade & Cladding Fixing
The slotted channel lets the fixing bolt be positioned anywhere along its length, absorbing on-site tolerance.
Curtain Wall & Panel Support
A continuous fixing line for curtain wall brackets and panel support angles along a precast edge.
Services & Bracket Runs
Supports a run of brackets or services fixings off a single cast-in channel instead of multiple individual sockets.
Material
Stainless Steel 304 (A2) / 316 (A4) available upon request
Load Range
120 - 400 KGS
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Size | S.W.L (KGS) | Code | Popular Length (mm) |
|---|---|---|---|
| 28/15 | 120 | GPS320128 | 100, 150, 300, 3000 |
| 38/17 | 200 | GPS320138 | 100, 150, 300, 3000 |
| 40/25 | 250 | GPS320140 | 100, 150, 300, 3000 |
| 49/30 | 400 | GPS320149 | 100, 150, 300, 3000 |
- Other different Length are available upon request.
- Safety Factor is 3:1.
- Stainless Steel 304 (A2)/316 (A4) available upon request.
- Surface: Black (B) /Zinc Plated (Z.P) / Hot Dipped Galvanized (H.D.G) are available.
YOU MAY ALSO NEED
Related Products

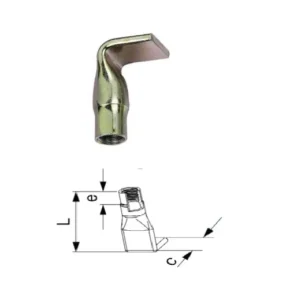

Fixing Socket With Bended End
View product

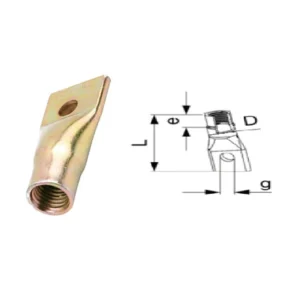

Fixing Socket
