CODE PREFIX: GPS2105

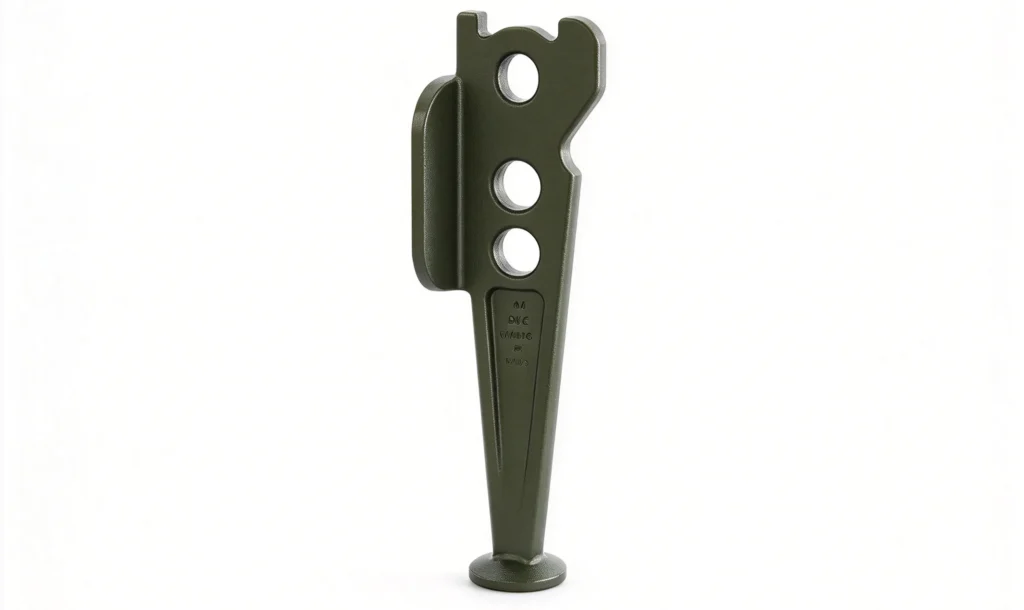

Fleet-Lift Drop Forged Erection Anchor with Shear Plate
The Fleet-Lift version of the drop-forged erection anchor, fitted with a welded shear plate, giving a heavy-duty surface pick-up and bracing point for precast wall panels.
APPLICATIONS
Where it's used
Heavy Panel Erection
Shear plate adds lateral load resistance for lifting and bracing thicker, higher-capacity wall panels.
Tilt-Up Construction
Used as the primary erection anchor on Fleet-Lift-rigged tilt-up panels.
Site Bracing
Provides a stable attachment point for temporary bracing once the panel is upright.
Material
Drop-Forged Steel with Welded Shear Plate
Load Range
6,000 – 20,000 LBS (2.5 – 10.0 ton load groups)
Safety Factor
N/A
SPECIFICATIONS
Available Sizes
| Load Group (Tons) | Axial Load (LBS) | Code | L (in) | W (in) | T (in) |
|---|---|---|---|---|---|
| 2.5 | 6000 | GPS2105-2.5 | 8 | 2 | 3/8 |
| 5.0 | 12000 | GPS2105-5.0 | 10-3/8 | 2-1/2 | 5/8 |
| 10.0 | 20000 | GPS2105-10.0 | 12-3/4 | 3-3/4 | 3/4 |
Need a rating outside this range, or a custom variant? Our engineering team can help.
