CODE PREFIX: GPS1005

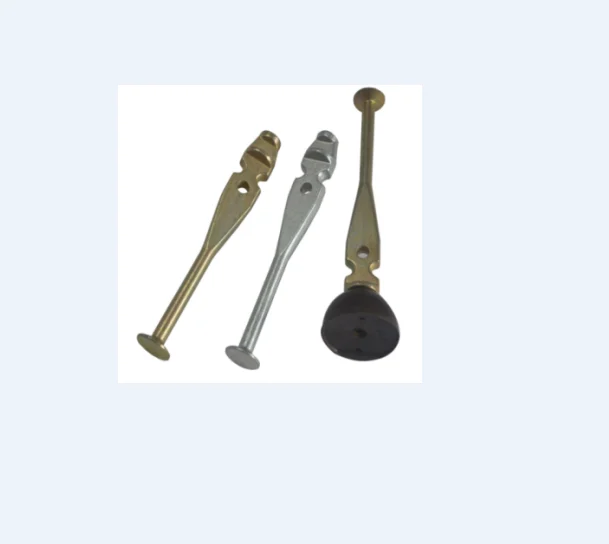

Spherical Head Tilt Up Anchor
A spherical-head anchor with an angled shaft purpose-built for tilt-up wall panel lifting.
APPLICATIONS
Where it's used
Tilt-Up Panel Lifting
Angled shaft is purpose-built for tilt-up panel lift geometry.
Panel Edge Rigging
Suited to lift points near panel edges during rotation off the bed.
Light-to-Medium Tilt-Up Projects
2.5-5.0 t range covers typical tilt-up wall panel weights.
Material
Forged Carbon Steel
Load Range
2.5 – 5.0 tons
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Rated Load (Tons) | Code | L (mm) | D1 (mm) | D (mm) |
|---|---|---|---|---|
| 2.5 | GPS1005025 | 240 | 26 | 14 |
| 5.0 | GPS1005050 | 240 | 36 | 20 |
- Stainless Steel 304 (A2) / 316 (A4) available upon request.
- Surface finish options: Black (B) / Zinc Plated (Z.P) / Hot Dipped Galvanized (H.D.G).
