CODE PREFIX: GPS2009

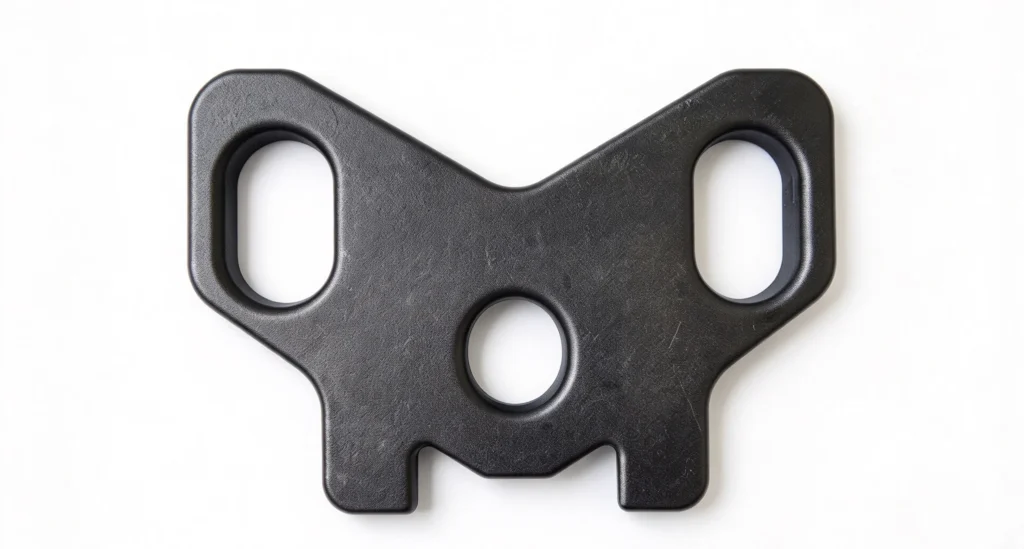

Fleet-Lift Sandwich Panel Erection Anchor with Shear Plate
A compact, wing-shaped erection anchor designed for sandwich (insulated) wall panels, available plain or with a welded shear plate for added lateral load capacity.
APPLICATIONS
Where it's used
Insulated Sandwich Panel Lifting
Low-profile wings anchor into the structural wythe of a sandwich panel without disturbing the insulation layer.
Tilt-Up Insulated Wall Erection
Shear-plate variant resists lateral load during tilt and bracing of insulated panels.
Panel Transport & Site Handling
Reusable surface pick-up point for moving sandwich panels from casting bed to final position.
Material
Stamped Steel Plate (Plain and Shear-Plate Variants)
Load Range
4.0 – 8.0 tons axial
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Load Group (Tons) | Axial Load (Tons) | Code | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|---|
| 5.0 | 4.0 | GPS2009040100 | 100 | 89 | 16 |
| 5.0 | 4.0 | GPS2009040150 | 150 | 89 | 16 |
| 10.0 | 8.0 | GPS2009080150 | 150 | 120 | 20 |
| 5.0 | 4.0 | GPS2009040100SP | 100 | 89 | 16 |
| 5.0 | 4.0 | GPS2009040150SP | 150 | 89 | 16 |
| 10.0 | 8.0 | GPS2009080150SP | 150 | 120 | 20 |
- Other different Length and load capacity are available upon request.
- Safety Factor is 3:1.
- Stainless Steel 304 (A2)/316 (A4) are available upon request
- Surface: Black (B) /Zinc Plated (Z.P) / Hot Dipped Galvanized (H.D.G) are available
