CODE PREFIX: GPS602

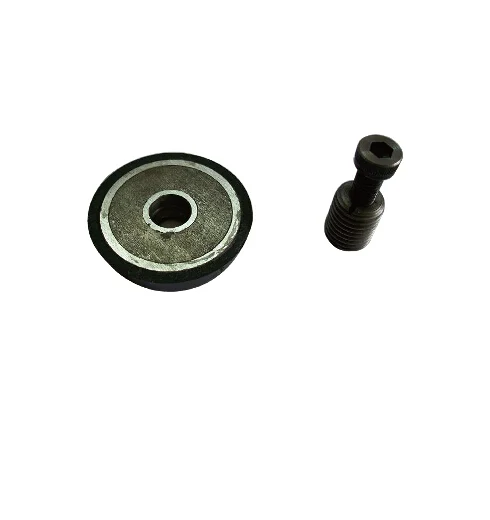

Threaded Bushing Magnets
A rubber-coated magnetic bushing paired with a fixing bolt, used to hold threaded sockets and inserts precisely in place on steel formwork before casting.
APPLICATIONS
Where it's used
Socket Alignment on Steel Formwork
Magnetic base grips the mould face to hold sockets and inserts square and centred.
Precast Mould Setup
Removes the need to drill or weld fixings onto the formwork for every pour.
Repeat-Use Production
Rubber coating protects the mould surface and magnet across repeated casting cycles.
Material
Rubber-Coated Magnet with Steel Fixing Bolt
Load Range
Magnet holding force ≥ 40 – ≥ 100 KGS
Safety Factor
N/A
SPECIFICATIONS
Available Sizes
| Item | Magnet Force (KGS) | Code | Dia (mm) | Height (mm) | Supporting Bolt Size |
|---|---|---|---|---|---|
| 50 | ≥40-45 | GPS602050 | 50 | 12 | M8-M20 |
| 60 | ≥60 | GPS602060 | 60 | 12 | M8-M20 |
| 70 | ≥80 | GPS602070 | 70 | 12 | M8-M20 |
| 90 | ≥100 | GPS602090 | 90 | 12 | M8-M20 |
Other different size are available upon request.
YOU MAY ALSO NEED
Related Products

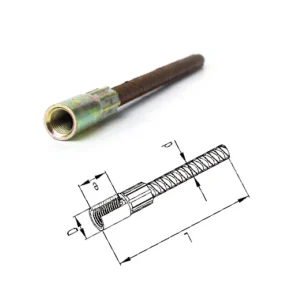

Straight Rebar Socket Anchor
