CODE PREFIX: GPS2104

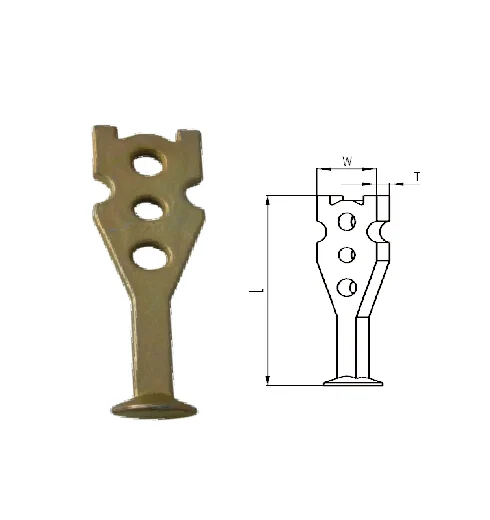

Fleet-Lift Drop Forged Erection Anchor
A drop-forged Fleet-Lift erection anchor with a slotted, double-holed head, cast into precast wall panels to give a strong, reusable surface pick-up point for Fleet-Lift style plate clutches.
APPLICATIONS
Where it's used
Precast Wall Panel Erection
Forged head gives a strong, wear-resistant engagement point for the matching Fleet-Lift clutch.
Tilt-Up Construction
Reliable pick-up point for tilting and positioning panels during erection.
Repeat Yard Handling
Drop-forged construction withstands repeated clutch engagement through demoulding, storage and transport.
Material
Drop-Forged Steel
Load Range
6,000 – 20,000 LBS (2.5 – 10.0 ton load groups)
Safety Factor
4:1
SPECIFICATIONS
Available Sizes
| Load Group (Tons) | Axial Load (LBS) | Code | L (in) | W (in) | T (in) |
|---|---|---|---|---|---|
| 2.5 | 6000 | GPS2104-2.5 | 8 | 2 | 3/8 |
| 5.0 | 12000 | GPS2104-5.0 | 10-3/8 | 2-1/2 | 5/8 |
| 10.0 | 20000 | GPS2104-10.0 | 12-3/4 | 3-3/4 | 3/4 |
- Safety Factor is 4:1.
- Surface: Black (B) /Zinc Plated (Z.P) / Hot Dipped Galvanized (H.D.G) are available
