CODE PREFIX: GPS2003
Spread Anchor

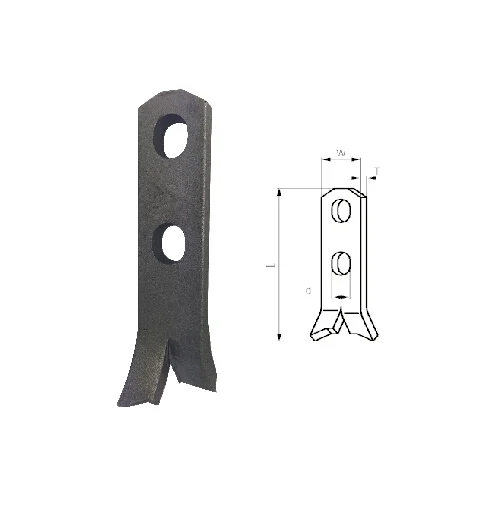

A forged double-pronged spread anchor with a deep punched hole, embedded in precast elements to spread lifting load across a wider bearing area for higher pull-out resistance.
APPLICATIONS
Where it's used
Heavy Precast Panel Lifting
Forked foot spreads the pull-out load across a wider area of concrete, suiting higher-capacity panels.
Beam & Column Handling
Deep embedment and spread foot profile suit thicker, heavily loaded precast members.
Tilt-Up & Site Erection
Reliable pick-up point for tilting and positioning large precast elements during erection.
Material
Forged Steel
Load Range
1.4 – 22.0 tons axial
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Load Group (Tons) | Axial Load (Tons) | Code | L (mm) | W (mm) | T (mm) | d (mm) |
|---|---|---|---|---|---|---|
| 2.5 | 1.4 | GPS2003014110 | 110 | 30 | 6 | 14 |
| 2.5 | 1.4 | GPS2003014160 | 160 | 30 | 6 | 14 |
| 2.5 | 2.0 | GPS2003020130 | 130 | 30 | 8 | 14 |
| 2.5 | 2.0 | GPS2003020160 | 160 | 30 | 8 | 14 |
| 2.5 | 2.0 | GPS2003020210 | 210 | 30 | 8 | 14 |
| 2.5 | 2.5 | GPS2003025150 | 150 | 30 | 10 | 14 |
| 2.5 | 2.5 | GPS2003025200 | 200 | 30 | 10 | 14 |
| 2.5 | 2.5 | GPS2003025250 | 250 | 30 | 10 | 14 |
| 5.0 | 3.0 | GPS2003030160 | 160 | 40 | 10 | 18 |
| 5.0 | 3.0 | GPS2003030200 | 200 | 40 | 10 | 18 |
| 5.0 | 3.0 | GPS2003030280 | 280 | 40 | 10 | 18 |
| 5.0 | 4.0 | GPS2003040180 | 180 | 40 | 12 | 18 |
| 5.0 | 4.0 | GPS2003040240 | 240 | 40 | 12 | 18 |
| 5.0 | 4.0 | GPS2003040320 | 320 | 40 | 12 | 18 |
| 5.0 | 5.0 | GPS2003050180 | 180 | 40 | 15 | 18 |
| 5.0 | 5.0 | GPS2003050240 | 240 | 40 | 15 | 18 |
| 5.0 | 5.0 | GPS2003050400 | 400 | 40 | 15 | 18 |
| 10.0 | 5.3 | GPS2003053220 | 220 | 60 | 12 | 26 |
| 10.0 | 5.3 | GPS2003053260 | 260 | 60 | 12 | 26 |
| 10.0 | 5.3 | GPS2003053340 | 340 | 60 | 12 | 26 |
| 10.0 | 7.5 | GPS2003075260 | 260 | 60 | 16 | 26 |
| 10.0 | 7.5 | GPS2003075300 | 300 | 60 | 16 | 26 |
| 10.0 | 7.5 | GPS2003075420 | 420 | 60 | 16 | 26 |
| 10.0 | 10.0 | GPS2003100300 | 300 | 60 | 20 | 26 |
| 10.0 | 10.0 | GPS2003100370 | 370 | 60 | 20 | 26 |
| 10.0 | 10.0 | GPS2003100520 | 520 | 60 | 20 | 26 |
| 26.0 | 14.0 | GPS2003140370 | 370 | 80 | 20 | 35 |
| 26.0 | 14.0 | GPS2003140460 | 460 | 80 | 20 | 35 |
| 26.0 | 22.0 | GPS2003220500 | 500 | 80 | 25 | 35 |
| 26.0 | 22.0 | GPS2003220620 | 620 | 80 | 25 | 35 |
- Other different Length and load capacity are available upon request.
- Safety Factor is 3:1.
- Stainless Steel 304 (A2)/316 (A4) are available upon request
- Surface: Black (B) /Zinc Plated (Z.P) / Hot Dipped Galvanized (H.D.G) are available
