CODE PREFIX: GPS3107

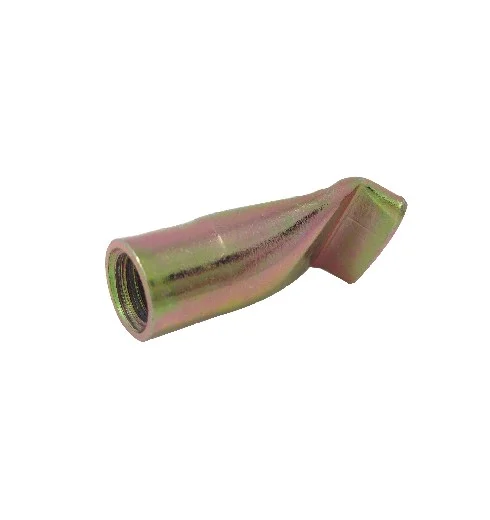

Fixing Socket With Wavy End
A fixing socket with a wavy (corrugated) embedded tail, giving strong mechanical bond with the surrounding concrete without needing a separate nail plate or cross pin.
APPLICATIONS
Where it's used
General Precast Fixing Points
Wavy tail profile gives reliable concrete bond for everyday bolted fixing points without extra hardware.
Wide Thread-Size Range Projects
M8-M30 range covers light fittings through to heavy structural brackets on one product family.
Facade & Services Bracket Attachment
A straightforward, strong-bond socket for cladding, services and handrail bracket fixing.
Material
Stainless Steel 304 (A2) / 316 (A4) available upon request
Load Range
250 - 2,500 KGS
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Size | S.W.L (KGS) | Code | Popular Length (mm) |
|---|---|---|---|
| M8 | 250 | GPS310708 | 40, 50, 80 |
| M10 | 400 | GPS310710 | 40, 50, 60, 110 |
| M12 | 500 | GPS310712 | 50, 60, 70 |
| M16 | 700 | GPS310716 | 70, 80, 100, 120 |
| M20 | 1000 | GPS310720 | 100, 70, 100, 120 |
| M24 | 1600 | GPS310724 | 100, 120 |
| M30 | 2500 | GPS310730 | 150, 135 |
- Stainless Steel 304 (A2)/316 (A4) available upon request.
- Safety Factor is 3:1.
