CODE PREFIX: GPS401

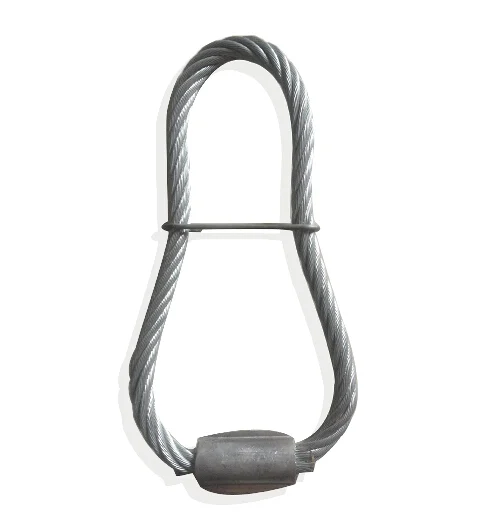

Cast in Loop
A cast-in wire rope lifting loop that projects from the face of a precast element once the formwork is struck, giving a simple loop anchor point for lifting or temporary bracing. Supplied in 13 load groups from 0.8 to 20.0 tons, each sized to its rated capacity.
APPLICATIONS
Where it's used
Precast Element Lifting
Cast into a panel, slab or beam to give a ready lifting point once the formwork is struck, sized to the element's weight via the matching load group.
Temporary Bracing & Handling Points
Used as an anchor point for temporary props or rigging during transport and erection, not only for the initial lift.
Capacity-Matched Selection
13 load groups (0.8T-20.0T) let the loop's rated capacity be matched to the actual lifting weight of the element it's cast into.
Material
Galvanized Steel Wire Rope
Load Range
0.8 - 20.0 Tons
Safety Factor
N/A
SPECIFICATIONS
Available Sizes
| Load Group (Tons) | Load Range (Tons) | Code | L (mm) | Dia (mm) |
|---|---|---|---|---|
| 0.8 | 0.8 | GPS40108200 | 200 | 6 |
| 1.2 | 1.2 | GPS40112220 | 220 | 7 |
| 1.6 | 1.6 | GPS40116235 | 235 | 8 |
| 2.0 | 2.0 | GPS40120255 | 255 | 9 |
| 2.5 | 2.5 | GPS40125320 | 320 | 10 |
| 4.0 | 4.0 | GPS40140370 | 370 | 12 |
| 5.2 | 5.2 | GPS40152380 | 380 | 14 |
| 6.3 | 6.3 | GPS40163425 | 425 | 16 |
| 8.0 | 8.0 | GPS40180480 | 480 | 18 |
| 10.0 | 10.0 | GPS401100535 | 535 | 20 |
| 12.5 | 12.5 | GPS401125590 | 590 | 22 |
| 16.0 | 16.0 | GPS401600670 | 670 | 26 |
| 20.0 | 20.0 | GPS401200750 | 750 | 28 |
Need a rating outside this range, or a custom variant? Our engineering team can help.
YOU MAY ALSO NEED
Related Products

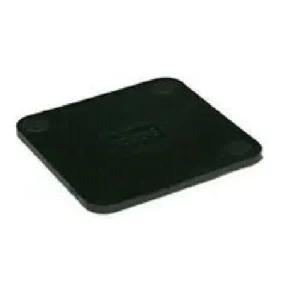

Square Shim Pad
View product

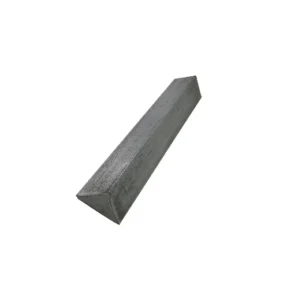

Triangular Steel Chamfer Strip
