CODE PREFIX: GPS2201

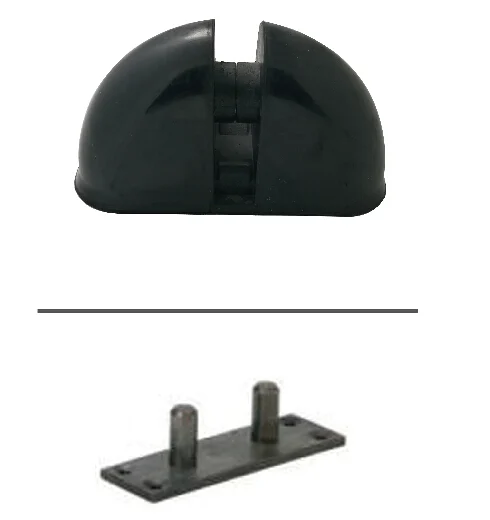

Rubber – Plastic Recess Former and Fitting
A reusable rubber recess former, fixed to the formwork with a steel holding plate, that forms a clean pocket around the matching anchor so the lifting clutch can engage after the concrete sets.
APPLICATIONS
Where it's used
Anchor Recess Forming
Creates a neat, debris-free pocket around the embedded anchor so the clutch seats properly after strike.
Formwork Fixing
Steel holding plate locates and holds the former accurately on the mould before the pour.
Repeat-Use Production
Reusable across multiple casting cycles, sized to match each anchor's load group.
Material
Rubber / Engineered Plastic Former with a Steel Fixing Plate
Load Range
N/A
Safety Factor
N/A
SPECIFICATIONS
Available Sizes
| Load Group (Tons) | Load Range (Tons) | Code |
|---|---|---|
| 1.25 | 1.25 | GPS2201-1.25 |
| 2.5 | 1.4-2.5 | GPS2201-2.5 |
| 5 | 3.0-5.0 | GPS2201-5.0 |
| 10 | 6.0-10.0 | GPS2201-10.0 |
| 26 | 12.5-26 | GPS2201-26 |
- Different holding plate can be provided separately.
- Different color can be provided subject to the request.
