CODE PREFIX: GPS2007
Plate Ring Anchor

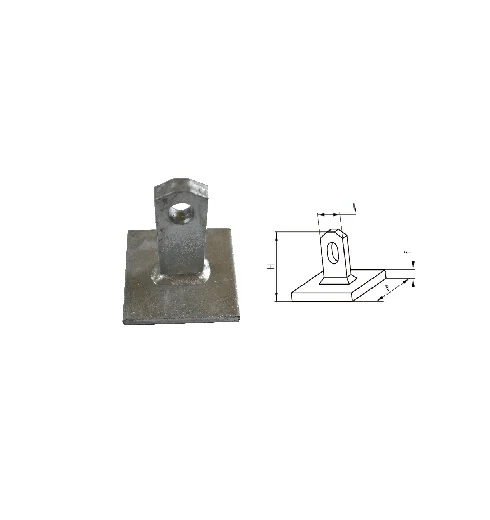

A ring anchor welded to a square base plate, embedded flat into the panel face to spread lifting load over a wide bearing area while keeping a low profile.
APPLICATIONS
Where it's used
Precast Floor & Slab Lifting
Flat base plate spreads load across the concrete face, suiting thinner slabs and floor elements.
Sandwich Panel Anchoring
Low profile fits within the structural wythe of insulated panels.
General Yard Handling
Reusable surface ring anchor for demoulding, turning and stacking.
Material
Steel Ring Welded to a Steel Base Plate
Load Range
1.4 – 10.0 tons axial
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Load Group (Tons) | Axial Load (Tons) | Code | H (mm) | W (mm) | f (mm) | e (mm) |
|---|---|---|---|---|---|---|
| 2.5 | 1.4 | GPS2007014005 | 55 | 30 | 8 | 80 |
| 2.5 | 2.5 | GPS2007025080 | 80 | 30 | 8 | 80 |
| 5.0 | 5.0 | GPS2007050120 | 120 | 40 | 10 | 100 |
| 10.0 | 10.0 | GPS2007100160 | 160 | 60 | 12 | 140 |
- Other different Length and load capacity are available upon request.
- Safety Factor is 3:1.
- Stainless Steel 304 (A2)/316 (A4) are available upon request
- Surface: Black (B) /Zinc Plated (Z.P) / Hot Dipped Galvanized (H.D.G) are available
YOU MAY ALSO NEED
Related Products

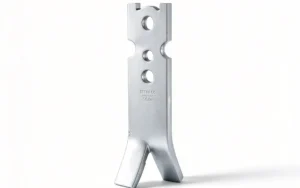

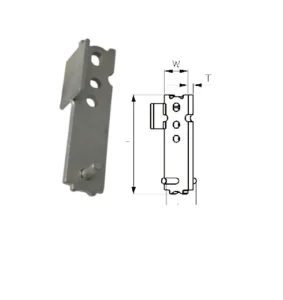

Erection Anchor with Cross Pin & Shear Plate
