CODE PREFIX: GPS2008

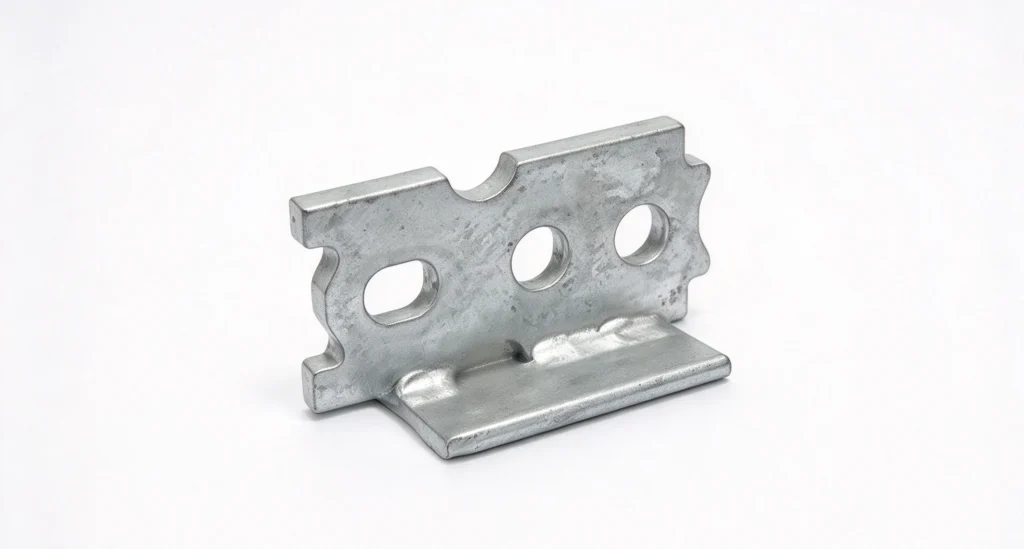

Two-Hole Erection Anchor with Shear Plate
A two-hole erection anchor available plain or with a welded shear plate, embedded in precast wall panels to resist lateral load alongside the lifting pull.
APPLICATIONS
Where it's used
Tilt-Up Wall Panel Erection
Shear-plate variant resists lateral load while the panel is braced upright after tilting.
Load-Bearing Panel Lifting
Two-hole head spreads the clutch connection across a wider bearing area.
Site Bracing Connections
Provides a stable point for temporary bracing once the panel is in its final position.
Material
Steel Plate (Plain and Shear-Plate Variants)
Load Range
2.5 – 10.0 tons axial
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Load Group (Tons) | Axial Load (Tons) | Code | L (mm) | W (mm) | T (mm) |
|---|---|---|---|---|---|
| 2.5 | 2.5 | GPS2008025100 | 100 | 50 | 10 |
| 5.0 | 5 | GPS2008050180 | 180 | 63.5 | 16 |
| 10.0 | 10 | GPS2008100180 | 180 | 90 | 20 |
| 10.0 | 10 | GPS2008100340 | 340 | 90 | 20 |
| 2.5 | 2.5 | GPS2008025100SP | 100 | 50 | 10 |
| 5.0 | 5 | GPS2008050180SP | 180 | 63.5 | 16 |
| 10.0 | 10 | GPS2008100180SP | 180 | 90 | 20 |
| 10.0 | 10 | GPS2008100340SP | 340 | 90 | 20 |
- Other different Length and load capacity are available upon request.
- Safety Factor is 3:1.
- Stainless Steel 304 (A2)/316 (A4) are available upon request
- Surface: Black (B) /Zinc Plated (Z.P) / Hot Dipped Galvanized (H.D.G) are available
