CODE PREFIX: GPS3202

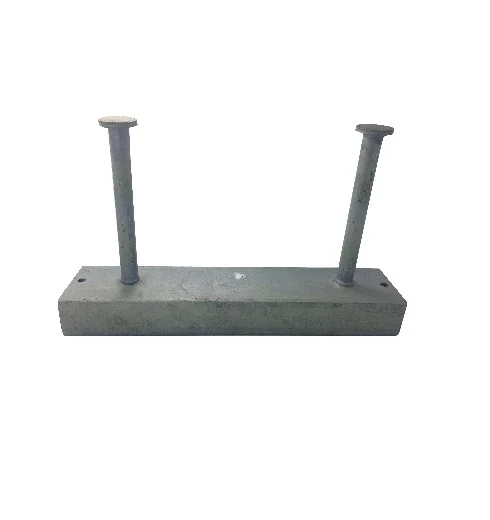

Hot Rolled Cast In Channel
A heavier-duty, hot-rolled cast-in channel offering higher load ratings than the cold-rolled version, with a choice of bolt-anchor or welded-anchor fixing legs to suit the embedment method.
APPLICATIONS
Where it's used
Heavy Facade & Cladding Systems
Higher load ratings (up to 1000 kg) suit heavier cladding panels and support brackets than the cold-rolled channel.
Structural Bracket & Bearing Fixings
Hot-rolled profile and choice of anchor type suit higher-load structural bracket connections.
Adjustable High-Load Fixing Lines
Continuous slotted channel gives on-site bolt positioning flexibility even at higher load ratings.
Material
Stainless Steel 304 (A2) / 316 (A4) available upon request
Load Range
250 - 1,000 KGS
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Size | S.W.L (KGS) | Code | Popular Length (mm) | Anchor |
|---|---|---|---|---|
| 40/22 | 250 | GPS320240 | 100, 150, 300, 3000 | bolt anchor/welded anchor |
| 50/30 | 400 | GPS320250 | 100, 150, 300, 3000 | bolt anchor/welded anchor |
| 52/34 | 800 | GPS320252 | 100, 150, 300, 3000 | bolt anchor/welded anchor |
| 55/42 | 800 | GPS320255 | 100, 150, 300, 3000 | bolt anchor/welded anchor |
| 72/48 | 1000 | GPS320272 | 100, 150, 300, 3000 | bolt anchor/welded anchor |
- Other different Length are available upon request.
- Safety Factor is 3:1.
- Stainless Steel 304 (A2)/316 (A4) available upon request.
- Surface: Black (B) /Zinc Plated (Z.P) / Hot Dipped Galvanized (H.D.G) are available.
