CODE PREFIX: GPS3005
Flat Lifting Socket With Rebar (Slab Anchor)
A flat slab anchor combining a wavy wire tail with a threaded Rebar-type socket, designed to lie flush within thin precast slabs and double walls.
APPLICATIONS
Where it's used
Precast Slab & Double Wall Lifting
Embedded flat within thin-section slabs where there isn't depth for a vertical anchor.
Hollow-Core & Flat Panel Production
Provides a shallow lifting point for flat precast elements cast on battery moulds.
Transport & Erection
Gives a secure pick-up point for loading, transporting and erecting flat precast units on site.
Material
Carbon Steel, Zinc Plated (Stainless Steel 304/316 available on request)
Load Range
500 – 1200 KGS
Safety Factor
4:1
SPECIFICATIONS
Available Sizes

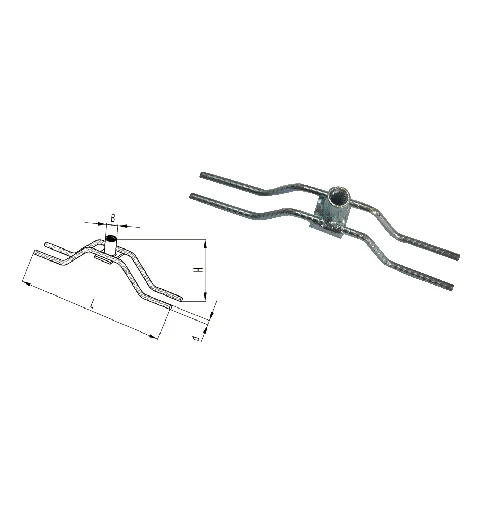

| Size | S.W.L (KGS) | Code | L (mm) | H (mm) | B (mm) | d (mm) |
|---|---|---|---|---|---|---|
| 12M/Rd | 500 | GPS300512200 | 200 | 55 | 16 | 6 |
| 16M/Rd | 1200 | GPS300516300 | 300 | 75 | 21 | 8 |
- Other different length and metric thread are available upon request
- Stainless Steel 304 (A2)/316 (A4) are available upon request
- Safety factor is 4:1
