CODE PREFIX: GPS702

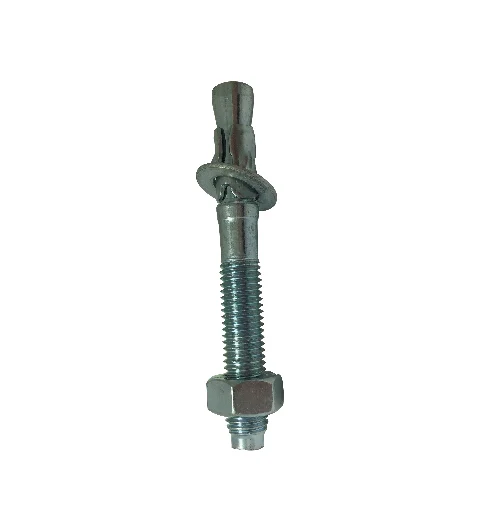

Wedge Anchor
A wedge-type expansion anchor bolt that expands against the wall of a pre-drilled hole as the nut is tightened, giving a strong through-bolt fixing in solid concrete. Supplied in 6 thread sizes from M6 to M20, each with a choice of lengths.
APPLICATIONS
Where it's used
Heavy-Duty Concrete Fixings
Expands against the drilled hole as the nut is torqued down, giving a strong mechanical fixing for structural brackets and equipment.
Through-Bolt Connections
Suited to fixings that pass through a bracket or base plate and need a projecting threaded stud, unlike a flush drop-in anchor.
Thread & Length Matched Selection
6 thread sizes and multiple length options per size let the anchor be matched to both the bolt size and the embedment depth required.
Material
Carbon Steel (Stainless Steel 304 (A2) / 316 (A4) available upon request)
Load Range
N/A
Safety Factor
N/A
SPECIFICATIONS
Available Sizes
| Size | Code | Length options (mm) |
|---|---|---|
| M6 | GPS7020600 | 50, 60, 70, 80 |
| M8 | GPS7020800 | 50, 70, 80, 100, 120 |
| M10 | GPS7021000 | 60, 80, 100, 120, 150 |
| M12 | GPS7021200 | 80, 100, 120, 150 |
| M16 | GPS7021600 | 100, 150, 200 |
| M20 | GPS7022000 | 100, 150, 200, 300 |
- Other different lengths are available upon request.
- Stainless Steel 304 (A2)/316 (A4) are available upon request.
- Surface: Black (B) / Zinc Plated (Z.P) / Hot Dipped Galvanized (H.D.G) are available.
