CODE PREFIX: GPS3105
Fixing Dowel With Crimped End

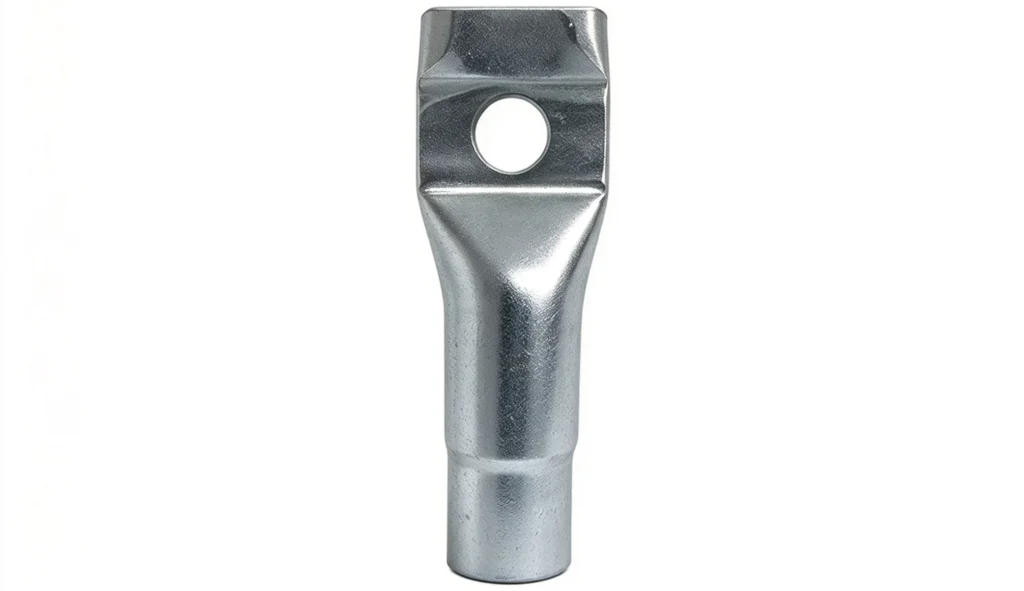

A cast-in dowel with a flattened, perforated (crimped) end for tying to reinforcement or formwork before the pour, exposing a threaded tip once struck for bolting fittings on site.
APPLICATIONS
Where it's used
Rebar-Tied Fixing Points
Crimped end can be wired directly to the reinforcement cage to hold position accurately during the pour.
Precast Beam & Column Fixings
Suited to fixing points in deeper, reinforced precast elements where a flat-plate socket isn't practical.
Site-Installed Bracket Attachment
Exposed threaded tip after striking gives a clean bolt-on point for brackets and fittings.
Material
Stainless Steel 304 (A2) / 316 (A4) available upon request
Load Range
250 - 1,800 KGS
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Size | S.W.L (KGS) | Code | L (mm) | g (mm) | e (mm) |
|---|---|---|---|---|---|
| M8 | 250 | GPS310508050 | 50 | 8.5 | 8 |
| M10 | 350 | GPS310510050 | 50 | 9.5 | 10 |
| M10 | 400 | GPS310510060 | 60 | 9.5 | 10 |
| M12 | 400 | GPS310512060 | 60 | 10.5 | 12 |
| M12 | 600 | GPS310512070 | 70 | 10.5 | 12 |
| M16 | 800 | GPS310516080 | 80 | 12.5 | 16 |
| M16 | 1000 | GPS310516100 | 100 | 12.5 | 16 |
| M20 | 1250 | GPS310520100 | 100 | 14.5 | 20 |
| M20 | 1250 | GPS310520120 | 120 | 14.5 | 20 |
| M24 | 1800 | GPS310524120 | 120 | 14.5 | 24 |
- Stainless Steel 304 (A2)/316 (A4) available upon request.
- Safety Factor is 3:1.
