CODE PREFIX: GPS3106

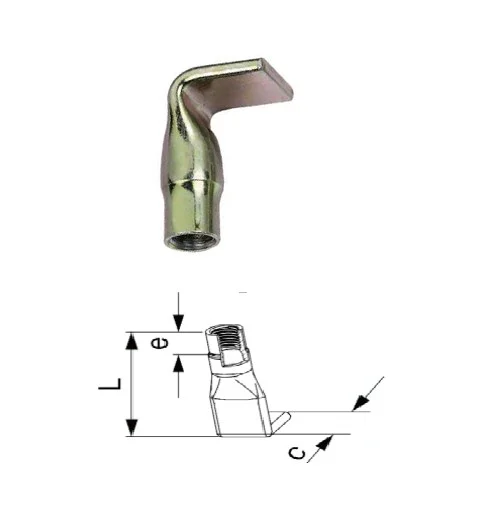

Fixing Socket With Bended End
A fixing socket with a bent (angled) tail, letting it sit correctly within shallow or congested sections where a straight-tail socket wouldn't fit cleanly against the reinforcement or formwork.
APPLICATIONS
Where it's used
Thin or Congested Sections
Angled tail clears tight rebar cages and shallow panel sections that a straight-tail socket can't fit into.
Edge & Corner Fixing Points
Suited to fixing points positioned close to a panel edge or corner where shaft orientation matters.
Facade Bracket Attachment
Provides a threaded bolt-on point for facade and cladding support brackets.
Material
Stainless Steel 304 (A2) / 316 (A4) available upon request
Load Range
250 - 1,600 KGS
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Size | S.W.L (KGS) | Code | L (mm) | c (mm) | e (mm) |
|---|---|---|---|---|---|
| M8 | 250 | GPS310608050 | 50 | 20 | 8 |
| M10 | 400 | GPS310610060 | 60 | 25 | 8 |
| M12 | 400 | GPS310612045 | 45 | 25 | 12 |
| M12 | 600 | GPS310612070 | 70 | 30 | 12 |
| M16 | 700 | GPS310616060 | 60 | 30 | 16 |
| M16 | 1000 | GPS310616100 | 100 | 35 | 16 |
| M20 | 800 | GPS310620070 | 70 | 30 | 20 |
| M20 | 1250 | GPS310620100 | 100 | 35 | 20 |
| M24 | 1600 | GPS310624080 | 80 | 35 | 24 |
- Stainless Steel 304 (A2)/316 (A4) available upon request.
- Safety Factor is 3:1.
YOU MAY ALSO NEED
Related Products
Cold Rolled Cast In Channel
View product

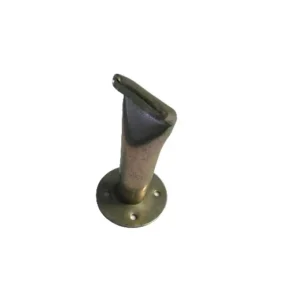

Fixing Socket With Wavy End With Nail Plate
