CODE PREFIX: GPS714

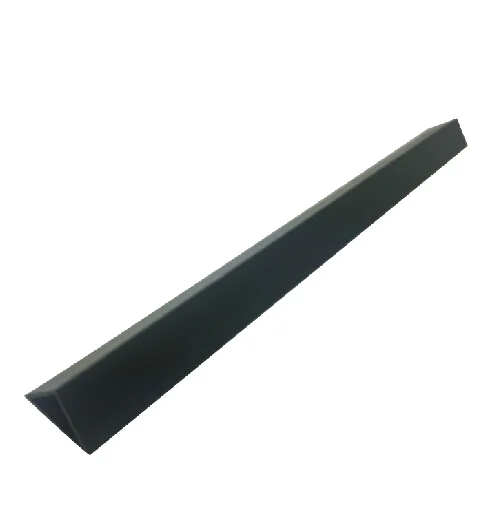

Plastic Triangular Chamfer
A plain triangular plastic chamfer strip (no nail flange) used to cast a clean beveled edge on a concrete element where the strip is held by the formwork joint rather than nailed. Supplied in 4 sizes (10mm to 25mm bevel edge) at a fixed 2000mm length.
APPLICATIONS
Where it's used
Beveled Edge Finishing
Forms a consistent chamfered edge on precast panels, slabs and beams, same purpose as the flanged version but without a nailing fin.
Formwork Joint-Held Placement
Suited to formwork details where the strip sits in a joint or corner and is held by the mould rather than nailed through a flange.
Size-Matched Selection
4 bevel sizes (10-25mm) at a fixed 2000mm length let the chamfer be matched to the project's finishing specification.
Material
Plastic
Load Range
N/A
Safety Factor
N/A
SPECIFICATIONS
Available Sizes
| Size | Code | Bevel edge (mm) | Length (mm) |
|---|---|---|---|
| 10*10 | GPS7141010 | 14 | 2000 |
| 15*15 | GPS7141515 | 21 | 2000 |
| 20*20 | GPS7142020 | 28 | 2000 |
| 25*25 | GPS7142525 | 35 | 2000 |
Need a rating outside this range, or a custom variant? Our engineering team can help.
