CODE PREFIX: GPS3102
Fixing Socket with Cross Pin
A fixing socket with a cross pin through its embedded tail, adding mechanical interlock with the surrounding concrete for extra pull-out resistance beyond a plain straight-tail socket.
APPLICATIONS
Where it's used
Higher Pull-Out Resistance Fixings
Cross pin mechanically locks the socket into the concrete, suited to fixings under higher tensile demand.
Facade & Heavy Bracket Attachment
Extra anchorage supports heavier cladding brackets and support angles than a plain socket.
Precast Connection Points
Used wherever a bolted connection needs more pull-out capacity than the standard fixing socket provides.
Material
Stainless Steel 304 (A2) / 316 (A4) available upon request
Load Range
250 - 1,700 KGS
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Size | S.W.L (KGS) | Code | L (mm) | F (mm) | g (mm) | e (mm) |
|---|---|---|---|---|---|---|
| M8 | 250 | GPS310208050 | 50 | 40 | 6 | 8 |
| M10 | 450 | GPS310210060 | 60 | 50 | 6 | 10 |
| M12 | 500 | GPS310212060 | 60 | 50 | 10 | 12 |
| M16 | 1000 | GPS310116100 | 100 | 80 | 10 | 16 |
| M20 | 1250 | GPS310120100 | 100 | 100 | 12 | 20 |
| M24 | 1700 | GPS310124120 | 120 | 100 | 12 | 24 |
- Stainless Steel 304 (A2)/316 (A4) available upon request.
- Safety Factor is 3:1.
YOU MAY ALSO NEED
Related Products

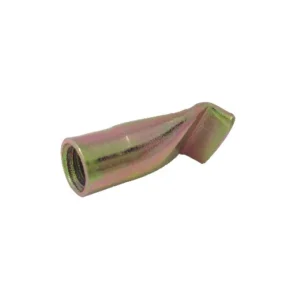

Fixing Socket With Wavy End
View product

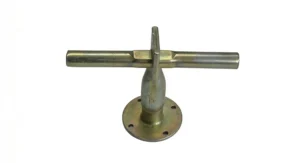

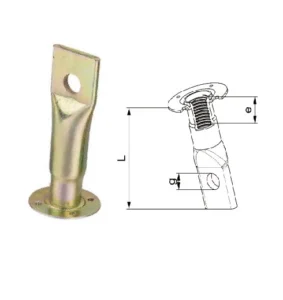

Fixing Socket With Nail Plate And Cross Pin
