CODE PREFIX: GPS1007
Plate Anchor
A square-plate foot anchor that spreads load over a wider bearing area, suited to thinner or lower-strength precast elements.
APPLICATIONS
Where it's used
Thin Panel & Early-Strike Lifting
Larger bearing plate reduces pull-out risk when lifting at lower concrete strength.
Precast Floor & Wall Panels
General-purpose lifting point for standard panel and slab production.
Low-Strength Concrete Mixes
Wider load distribution suits mixes with lower early compressive strength.
Material
Forged Carbon Steel with Square Bearing Plate
Load Range
2.5 – 10 tons
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Rated Load (Tons) | Code | Popular Length L (mm) | A x B (mm) |
|---|---|---|---|
| 2.5 | GPS1007025 | 55, 120 | 70x70 |
| 5.0 | GPS1007050 | 55, 65, 110 | 90x90 |
| 10.0 | GPS1007100 | 115 | 90x90 |
- Other different Length are available according to the order.
- Surface finish options: Black (B) / Zinc Plated (Z.P) / Hot Dipped Galvanized (H.D.G).
YOU MAY ALSO NEED
Related Products

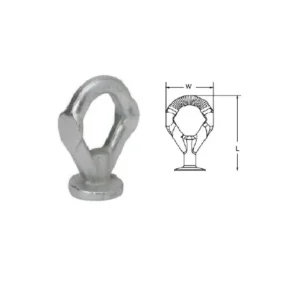

Easy Lift Foot Anchor
View product

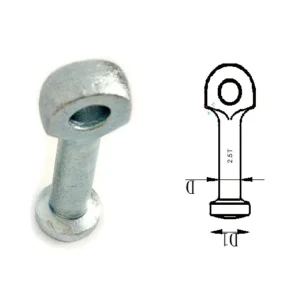

Eye Anchor
