CODE PREFIX: GPS2301

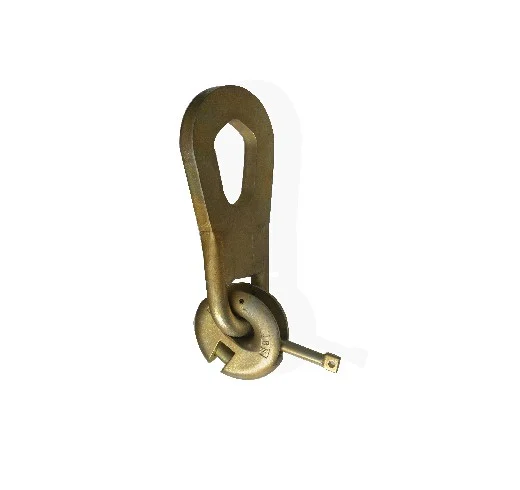

Ring Clutch
A drop-forged ring clutch that hooks onto a flat or erection anchor's eye, giving a quick-connect, self-locking pick-up point for lifting precast elements.
APPLICATIONS
Where it's used
Precast Panel Lifting
Hooks directly onto the embedded erection or flat anchor's eye for a fast, repeatable crane connection.
Multi-Point Rigging
Used across multi-leg slings for balanced lifting of large or asymmetric precast panels.
Site Erection & Bracing
Quick-release action speeds up detaching the crane once the panel is braced in place.
Material
Drop-Forged Alloy Steel
Load Range
1.4 – 26 tons
Safety Factor
N/A
SPECIFICATIONS
Available Sizes
| Load Group (Tons) | Load Range (Tons) | Code |
|---|---|---|
| 2.5 | 1.4-2.5 | GPS2301-2.5 |
| 5 | 3.0-5.0 | GPS2301-5.0 |
| 10 | 6.0-10.0 | GPS2301-10.0 |
| 26 | 12.5-26 | GPS2301-26 |
Need a rating outside this range, or a custom variant? Our engineering team can help.
YOU MAY ALSO NEED
Related Products

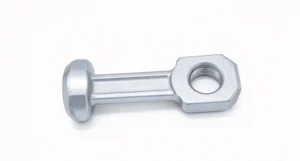

Ring Lift Uni-Anchor
View product

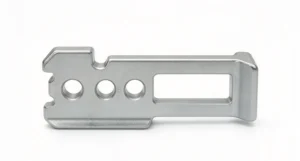

Erection Anchor
