CODE PREFIX: GPS2002
Erection Anchor

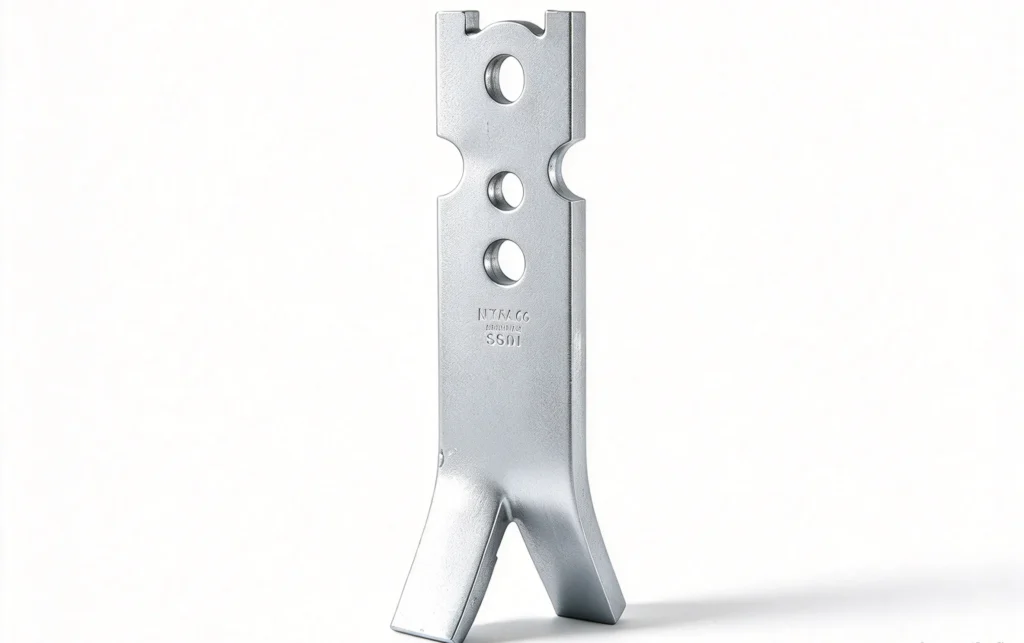

A forged steel erection anchor with a slotted, double-holed head, embedded in precast wall and floor panels as a general-purpose surface lifting and bracing point across a wide range of load capacities.
APPLICATIONS
Where it's used
Precast Wall Panel Erection
Cast flush into the panel face to receive a plate clutch for tilting, lifting and positioning the panel on site.
Floor & Slab Element Handling
Mid-range sizes suit precast floor slabs and medium-duty flat elements during demoulding and transport.
Heavy Panel & Beam Lifting
Largest sizes (26-tonne group) handle thicker, higher-capacity precast wall and beam elements.
Material
Forged Carbon Steel
Load Range
1.25 – 22.0 tons axial
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Load Group (Tons) | Axial Load (Tons) | Code | L (mm) | W (mm) | T (mm) |
|---|---|---|---|---|---|
| 1.25 | 1.25 | GPS2002-1.25 | 120 | 30 | 6 |
| 2.5 | 1.4 | GPS2002014200 | 200 | 55 | 6 |
| 2.5 | 2.5 | GPS2002025230 | 230 | 55 | 10 |
| 5.0 | 4.0 | GPS2002040270 | 270 | 70 | 12 |
| 5.0 | 5.0 | GPS2002050290 | 290 | 70 | 16 |
| 10.0 | 7.5 | GPS2002075320 | 320 | 95 | 16 |
| 10.0 | 10.0 | GPS2002100390 | 390 | 95 | 20 |
| 26.0 | 12.5 | GPS2002125500 | 500 | 148 | 20 |
| 26.0 | 17.0 | GPS2002170500 | 500 | 148 | 25 |
| 26.0 | 22.0 | GPS2002220300 | 500 | 148 | 30 |
- Safety Factor is 3:1.
- Stainless Steel 304 (A2)/316 (A4) are available upon request
- Surface: Black (B) /Zinc Plated (Z.P) / Hot Dipped Galvanized (H.D.G) are available
