CODE PREFIX: GPS710

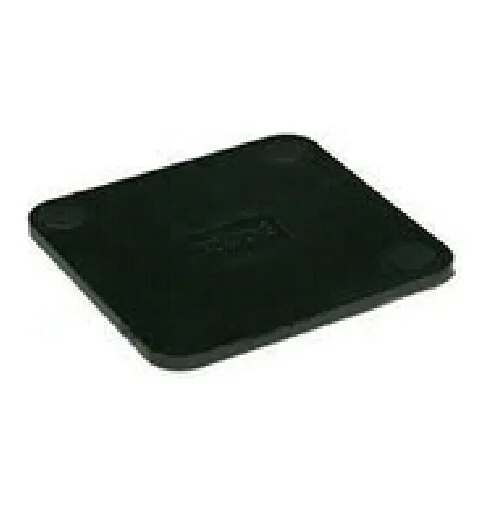

Square Shim Pad
A square shim pad used to pack and level precast panels or formwork during erection and casting. Supplied in 8 thicknesses (2-20mm) at a fixed 70*70mm footprint.
APPLICATIONS
Where it's used
Panel & Formwork Levelling
Packs under a precast panel or formwork edge to correct small height differences before final fixing.
Bearing Pad at Flat Connections
Its flat square footprint suits general bearing and levelling points where no bolt or pin cutout is needed.
Thickness-Matched Packing
8 thickness options (2-20mm), the widest range in the shim pad family, let the pack height be built up in fine steps to close a specific gap.
Load Range
N/A
Safety Factor
N/A
SPECIFICATIONS
Available Sizes
| Item | Code | Thickness (mm) | L*W (mm) |
|---|---|---|---|
| 2 | GPS71002 | 2 | 70*70 |
| 3 | GPS71003 | 3 | 70*70 |
| 5 | GPS71005 | 5 | 70*70 |
| 7 | GPS71007 | 7 | 70*70 |
| 9 | GPS71009 | 9 | 70*70 |
| 10 | GPS71010 | 10 | 70*70 |
| 15 | GPS71015 | 15 | 70*70 |
| 20 | GPS71020 | 20 | 70*70 |
- Other different sizes are available upon request.
- Material (rubber or plastic) not confirmed from source - please advise so the Material spec can be added.
