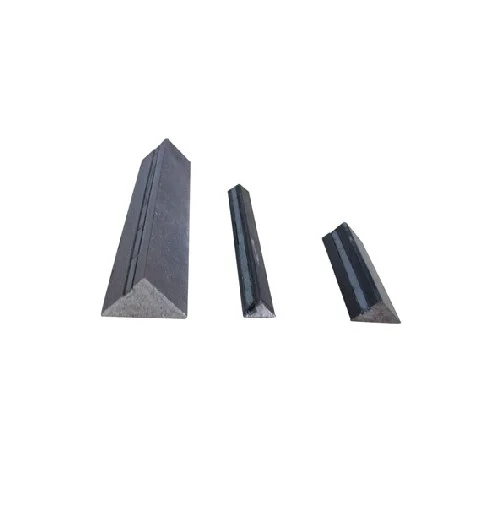

Magnetic Steel Chamfer
A magnetized triangular chamfer strip that sits directly on the magnetic shuttering table (or a rail-mounted Shuttering Magnet Adaptor Clamp) to form a chamfered (beveled) edge on the cast concrete element, held in place by its own magnetized face instead of nails or tape. Available in four triangle sizes (10mm to 25mm) with one- or two-sided magnetizing and a choice of fully or partially magnetized length.
Where it's used
Chamfered Panel & Slab Edges
Forms a clean beveled edge along a precast panel or slab without nailing or taping a timber chamfer strip in place.
Fast Mould Changeover
Its magnetized face repositions instantly on the steel mould table, speeding up setup between pours compared to a fixed or glued chamfer.
One- or Two-Sided Magnetizing for Different Layouts
One-sided magnetizing suits an edge chamfer against a flat table; two-sided suits a chamfer that needs to hold between two steel faces.
Available Sizes
| Item | Code | Dimensions A*B*C (mm) | Magnetized Length | Side Magnetized | Length (mm) |
|---|---|---|---|---|---|
| 10*10 | GPS6011010 | 10*10*14 | 100%/50% | One/Two | 2000 or 3000 |
| 15*15 | GPS6011515 | 15*15*21 | 100%/50% | One/Two | 2000 or 3000 |
| 20*20 | GPS6012020 | 20*20*28 | 100%/50% | One/Two | 2000 or 3000 |
| 25*25 | GPS6012525 | 25*25*35 | 100%/50% | One/Two | 2000 or 3000 |
