CODE PREFIX: GPS3108

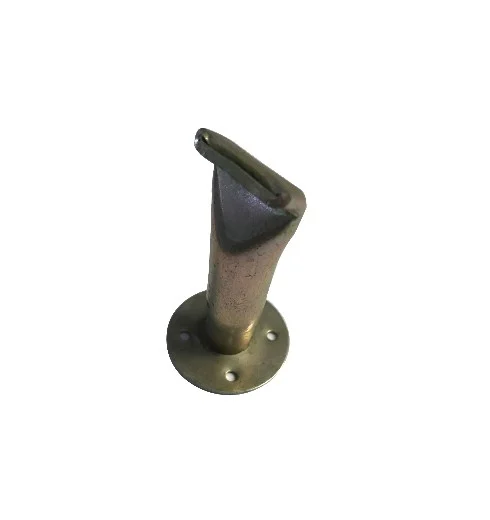

Fixing Socket With Wavy End With Nail Plate
Combines the wavy tail's strong concrete bond with a nail plate for accurate, formwork-fixed positioning before the pour – a precise and secure fixing socket for demanding production runs.
APPLICATIONS
Where it's used
Precision-Positioned Facade Fixings
Nail plate keeps the socket exactly placed on the formwork while the wavy tail bonds strongly into the concrete.
High-Volume Panel Production
Formwork-fixed accuracy suits repeatable fixing-point placement across large production runs.
Heavier Bracket & Bolted Connections
Strong wavy-tail bond supports heavier cladding brackets and bolted structural connections.
Material
Stainless Steel 304 (A2) / 316 (A4) available upon request
Load Range
250 - 2,500 KGS
Safety Factor
3:1
SPECIFICATIONS
Available Sizes
| Size | S.W.L (KGS) | Code | Popular Length (mm) |
|---|---|---|---|
| M8 | 250 | GPS310808 | 40, 50, 80 |
| M10 | 400 | GPS310810 | 40, 50, 60, 110 |
| M12 | 500 | GPS310812 | 50, 60, 70 |
| M16 | 700 | GPS310816 | 70, 80, 100, 120 |
| M20 | 1000 | GPS310820 | 100, 70, 100, 120 |
| M24 | 1600 | GPS310824 | 100, 120 |
| M30 | 2500 | GPS310830 | 150, 35 |
- Stainless Steel 304 (A2)/316 (A4) available upon request.
- Safety Factor is 3:1.
