CODE PREFIX: GPS713

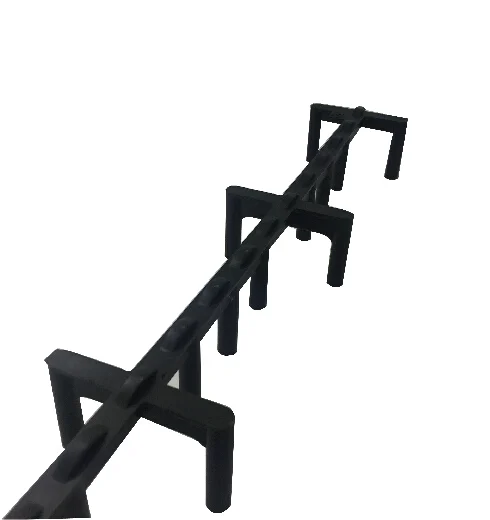

Plastic Line Spacer
A continuous plastic "ladder" line spacer with multiple cradles along its length that holds a run of reinforcing bars at the specified cover in one piece, instead of placing individual spacers. Supplied in 7 cover sizes (20-75mm) and two lengths (500mm/750mm).
APPLICATIONS
Where it's used
Continuous Bar-Run Support
Its multiple cradles hold an entire run of parallel reinforcing bars at the correct cover in a single length, reducing the number of individual spacers needed.
Slab & Mat Foundation Reinforcement
Suited to large flat reinforcement layouts (slabs, mat foundations) where bars run in long, regularly-spaced lines.
Cover & Length Matched Selection
7 cover sizes and a choice of 500mm or 750mm lengths let the spacer be matched to both the cover depth and the bar spacing on the job.
Material
Plastic
Load Range
N/A
Safety Factor
N/A
SPECIFICATIONS
Available Sizes
| Size | Code | Cover of Concrete (mm) | Length (mm) |
|---|---|---|---|
| 20 | GPS713020 | 20 | 500 / 750 |
| 25 | GPS713025 | 25 | 500 / 750 |
| 30 | GPS713030 | 30 | 500 / 750 |
| 40 | GPS713040 | 40 | 500 / 750 |
| 50 | GPS713050 | 50 | 500 / 750 |
| 60 | GPS713060 | 60 | 500 / 750 |
| 75 | GPS713075 | 75 | 500 / 750 |
Other different sizes are available upon request.
