CODE PREFIX: GPS703

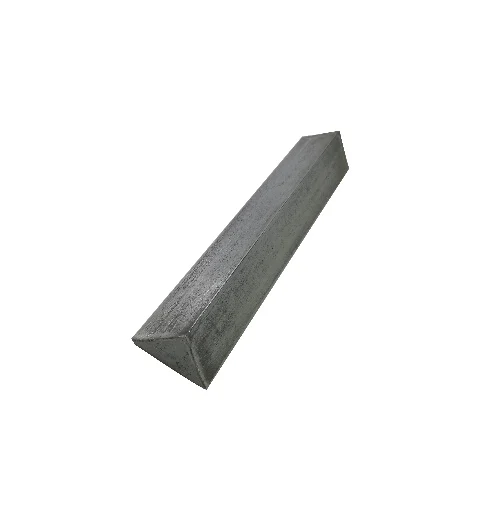

Triangular Steel Chamfer Strip
A rigid steel triangular chamfer strip used to cast a durable, reusable beveled edge on precast concrete elements, typically fixed directly into the steel mould. Supplied in 6 sizes (7mm to 30mm bevel edge) and 3 length options (2000/3000/4000mm).
APPLICATIONS
Where it's used
Reusable Steel Mould Chamfers
Its steel construction withstands repeated use in a permanent steel mould, unlike a single-use plastic chamfer strip.
Beveled Edge Finishing
Forms a clean, consistent chamfered edge on precast panels, slabs and beams cast against the steel mould.
Size & Length Matched Selection
6 bevel sizes and 3 length options let the strip be matched to both the finishing specification and the mould dimension.
Material
Steel
Load Range
N/A
Safety Factor
N/A
SPECIFICATIONS
Available Sizes
| Size | Code | Bevel edge (mm) | Length (mm) |
|---|---|---|---|
| 7*7 | GPS7030707 | 9.9 | 2000 / 3000 / 4000 |
| 10*10 | GPS7031010 | 14 | 2000 / 3000 / 4000 |
| 15*15 | GPS7031515 | 21 | 2000 / 3000 / 4000 |
| 20*20 | GPS7032020 | 28 | 2000 / 3000 / 4000 |
| 25*25 | GPS7032525 | 35 | 2000 / 3000 / 4000 |
| 30*30 | GPS7033030 | 42 | 2000 / 3000 / 4000 |
Need a rating outside this range, or a custom variant? Our engineering team can help.
