CODE PREFIX: GPS700

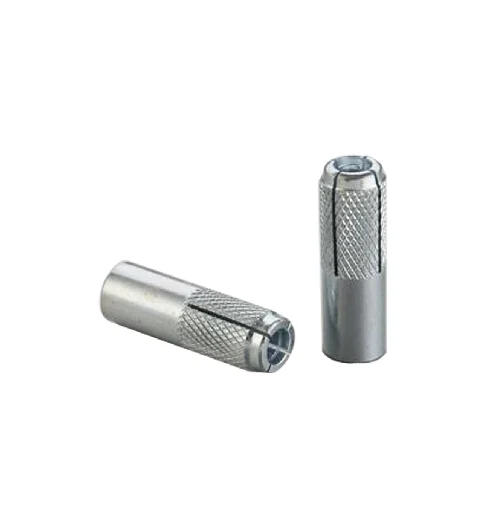

Drop in Anchor
An internally-threaded, knurled drop-in anchor that expands against the wall of a pre-drilled hole to give a flush, load-bearing threaded fixing point in concrete. Supplied in 6 thread sizes from M6 to M20.
APPLICATIONS
Where it's used
Post-Installed Fixings in Concrete
Drops into a pre-drilled hole and expands when set, giving a reusable threaded fixing point for brackets, rails and equipment.
Flush-Mounted Connection Points
Sits flush with the concrete face once installed, suited to fixings that need a clean finished surface.
Thread-Size Matched Selection
6 thread sizes (M6-M20) let the anchor be matched to the bolt size specified for the fixing being installed.
Material
Carbon Steel (Stainless Steel 304 (A2) / 316 (A4) available upon request)
Load Range
N/A
Safety Factor
N/A
SPECIFICATIONS
Available Sizes
| Size | Code | Length (mm) | Depth of thread (mm) |
|---|---|---|---|
| M6*25 | GPS70006025 | 25 | 10 |
| M8*30 | GPS70008030 | 30 | 14 |
| M10*40 | GPS70010040 | 40 | 19 |
| M12*50 | GPS70012050 | 50 | 22 |
| M16*65 | GPS70016065 | 65 | 30 |
| M20*80 | GPS70020080 | 80 | 38 |
- Other different lengths are available upon request.
- Stainless Steel 304 (A2)/316 (A4) are available upon request.
- Surface: Black (B) / Zinc Plated (Z.P) / Hot Dipped Galvanized (H.D.G) are available.
YOU MAY ALSO NEED
Related Products

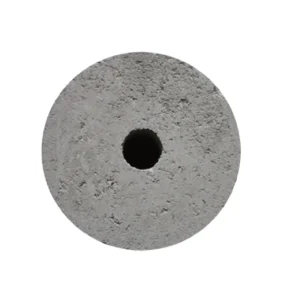

Concrete Spacer - Round Type
View product

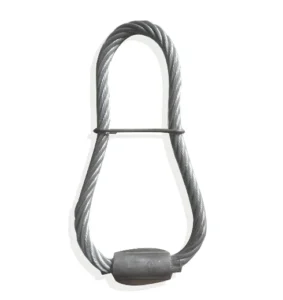

Cast in Loop
